About this task

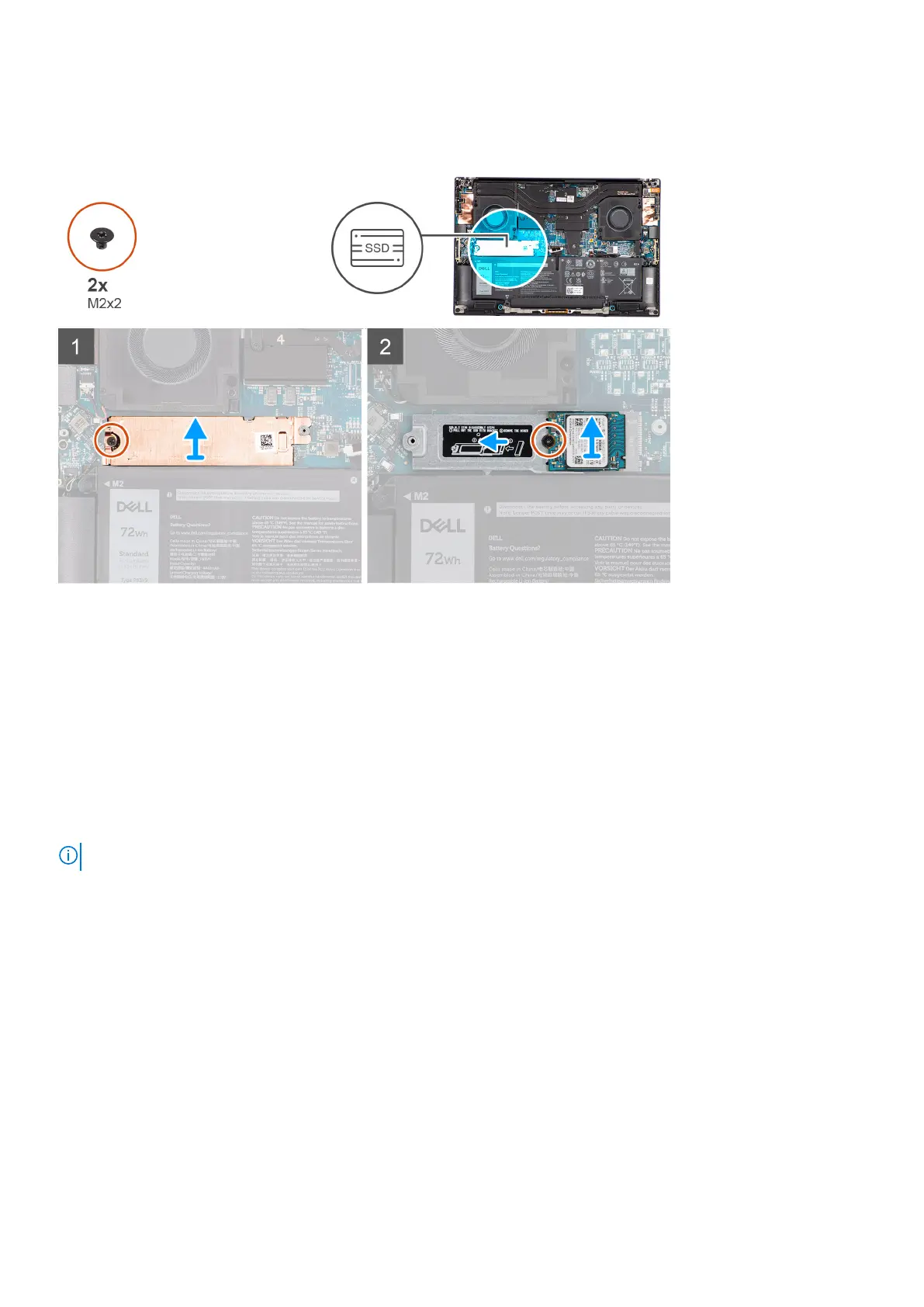

The figure indicates the location of the M.2 2230 solid state drive and provides a visual representation of the removal
procedure.
Steps
1. Remove the (M2x2) screw that secures the SSD thermal plate to the M.2 2230 solid state drive bracket.
2. Lift to remove the SSD thermal plate.
3. Lift the M.2 2230 solid state drive bracket at an angle and slide to remove from its slot on the system board.
4. Remove the (M2x2) screw that secures the M.2 2230 solid state drive to the M.2 2230 solid state drive bracket.
5. Lift to remove the M.2 2230 solid state drive from the M.2 2230 solid state drive bracket.
Installing the M.2 2230 solid state drive
Prerequisites
NOTE: For computers shipped with M.2 2230 solid state drive.
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the M.2 2230 solid state drive and provides a visual representation of the installation
procedure.
Removing and installing components
17
