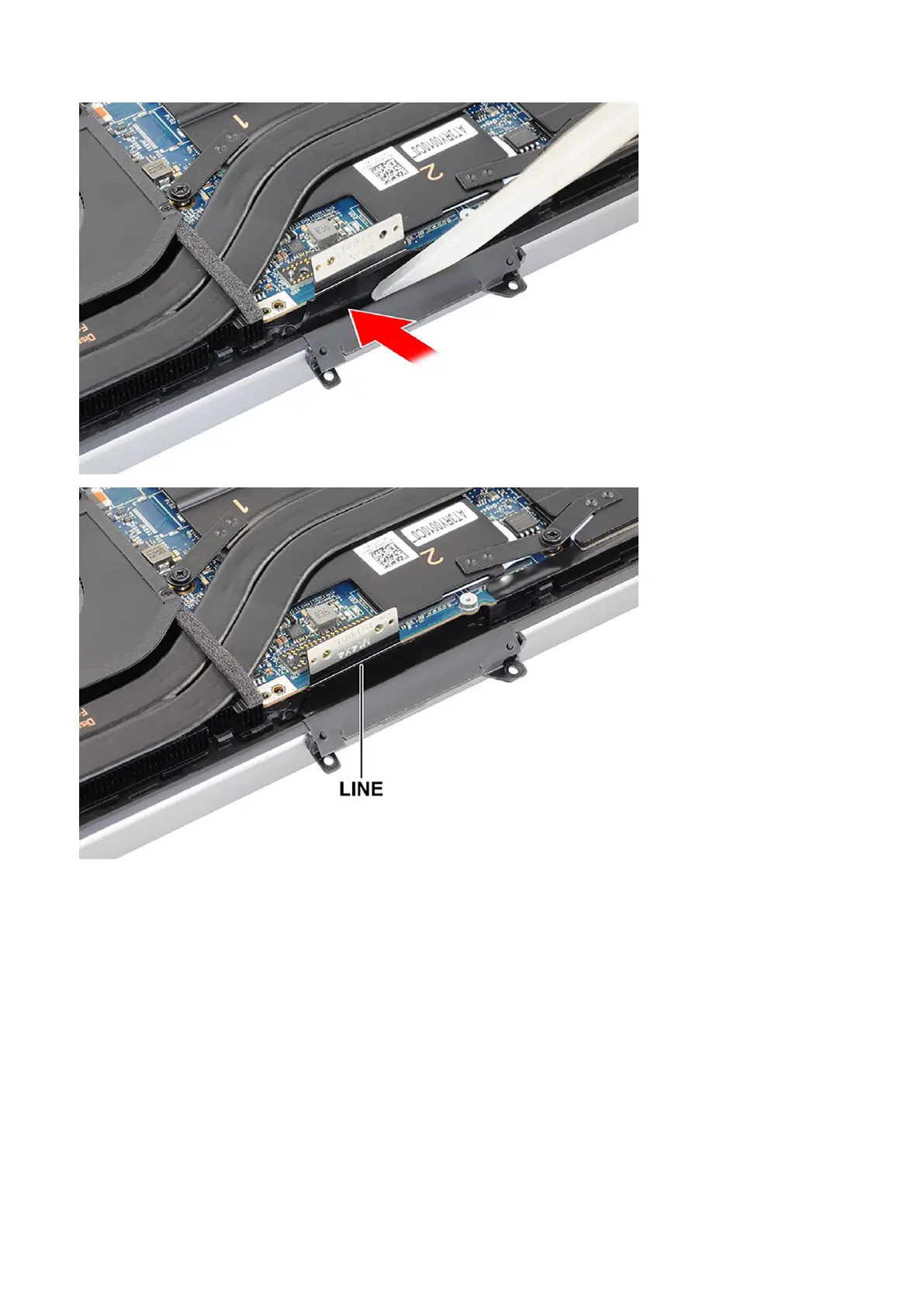

4. Place the interposer board and connect the display FPC to the system board.
5. Replace the two (T5, M1.4x4) Torx screws that secure the display FPC to the system board.
6. Replace the two (T5, M1.4x4) Torx screws that secure the display FPC holder to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
46
Removing and installing components
