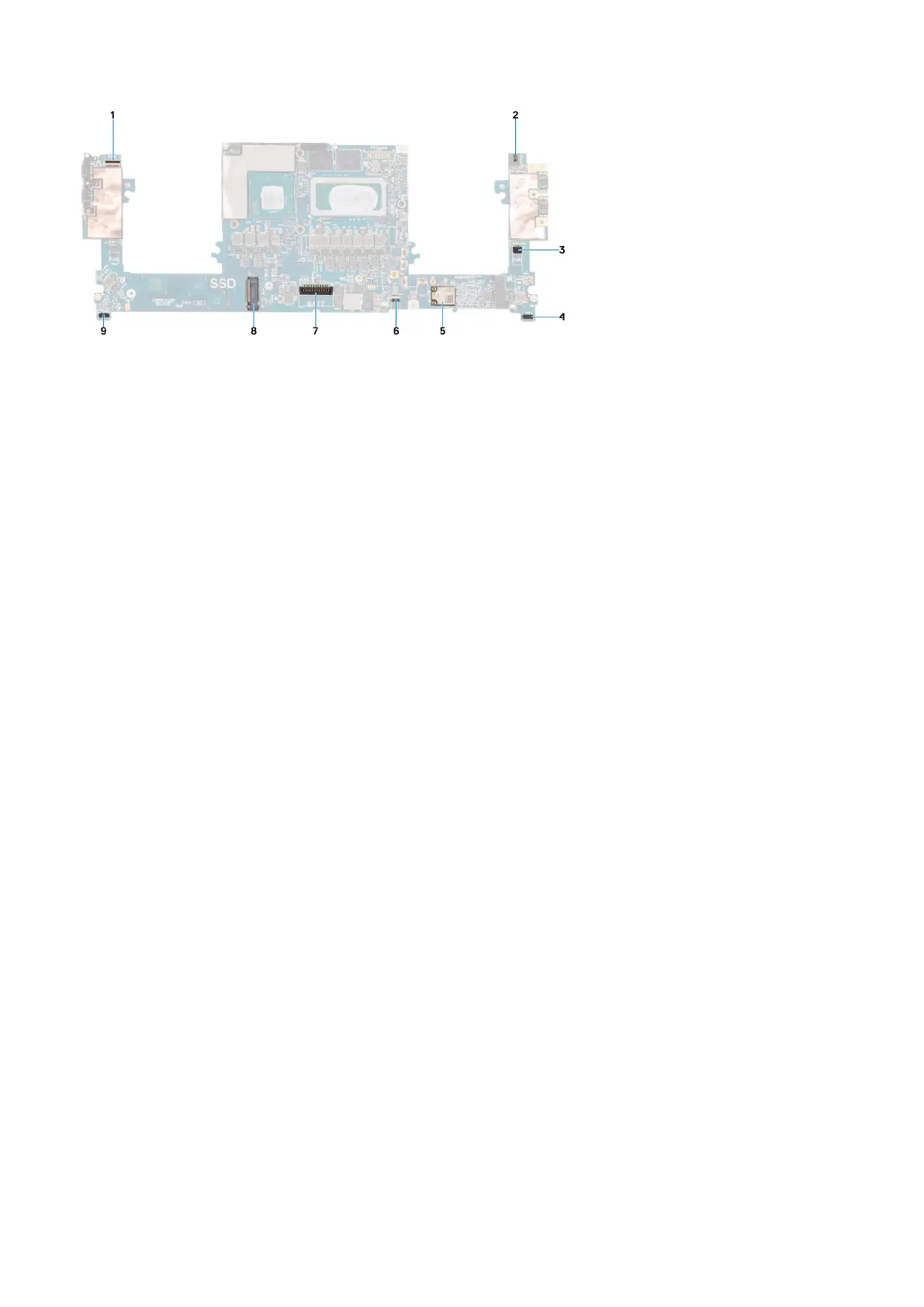

1. Power button with fingerprint reader FPC connector
2. Audio jack FPC connector
3. Left fan cable connector
4. Left tweeter speaker cable connector
5. Integrated WLAN card
6. Battery LED FPC connector
7. Battery cable connector
8. M.2 2230/2280 solid state drive slot
9. Right tweeter speaker cable connector
