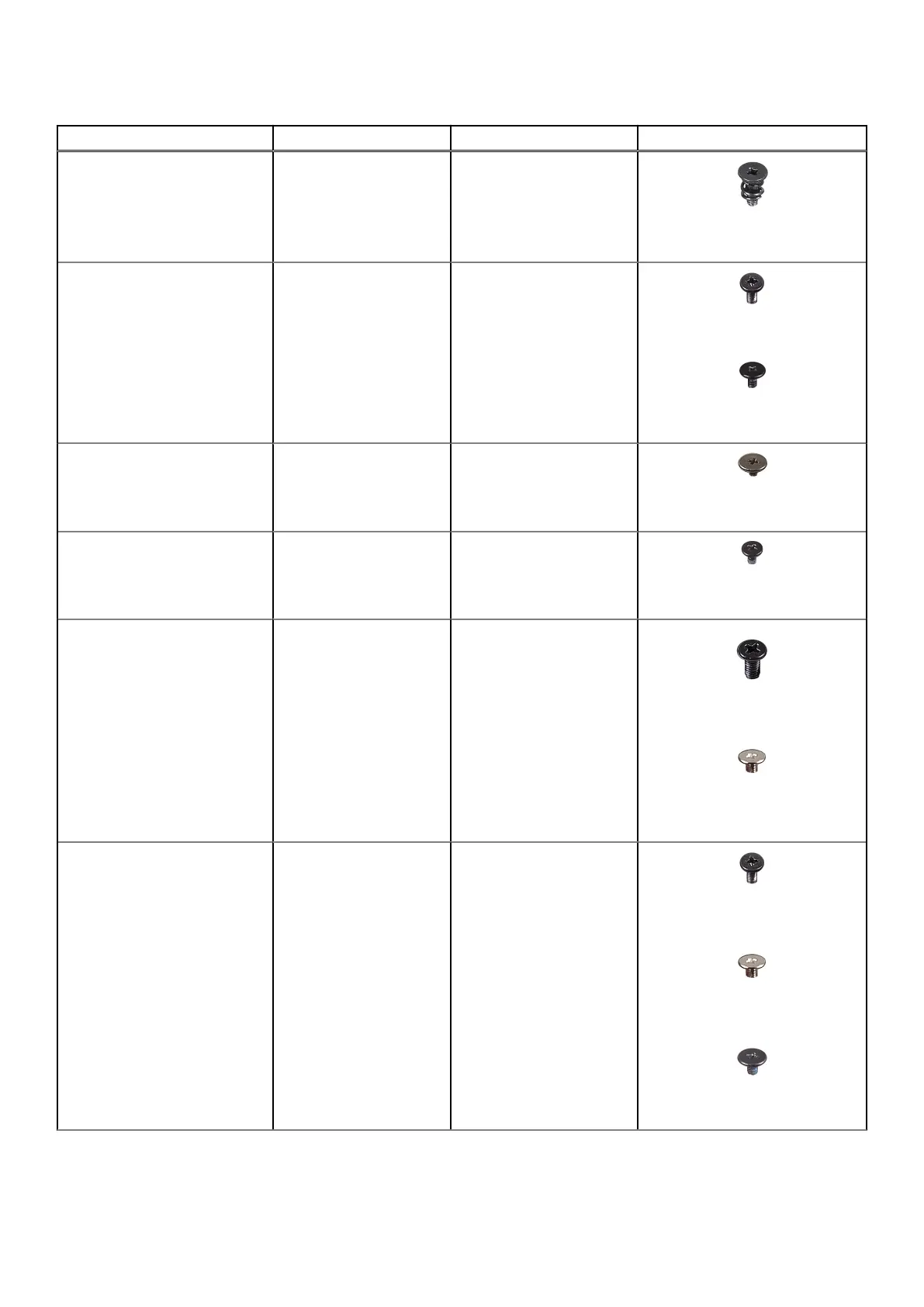

Table 32. Screw list(continued)
Component Screw type Quantity Screw image
Heat-sink for discrete graphics Captive screw 5
Figure 15. Captive screw
Audio jack M2x4
M1.6x3
3
1
Figure 16. M2x4
Figure 17. M1.6x3
Speakers M1.6x1.8 2
Figure 18. M1.6x1.8
Smart-card reader M1.6x1.7 2
Figure 19. M1.6x1.7
Display assembly M2.5x5
T5, M1.4x4
6
4
Figure 20. M2.5x5
Figure 21. T5, M1.4x4
System board M2x4
T5, M1.4x4
M1.6x2.3
6
4
1
Figure 22. M2x4
Figure 23. T5, M1.4x4
Figure 24. M1.6x2.3
