2. Remove the base cover.
About this task
The following images indicate the location of the graphics-card fan and provide a visual representation of the removal
procedure.

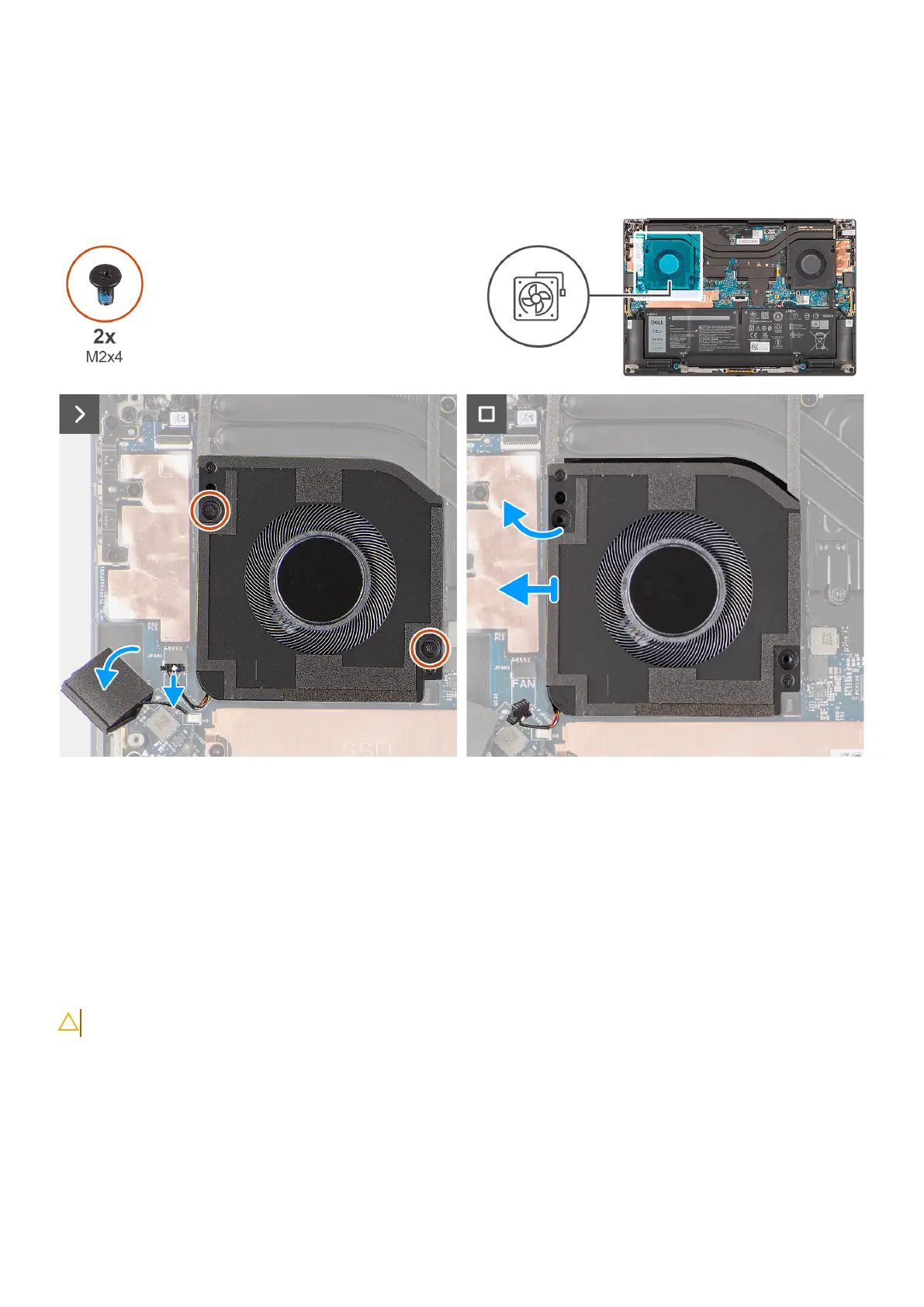

Figure 42. Removing the graphics-card fan
Steps
1. Carefully peel off the tweeter speaker from its compartment next to the fan connector to create more space to disconnect
the fan cable.
2. Disconnect the graphics-card fan cable from the connector on the system board.
3. Remove the two screws (M2x4) that secure the graphics-card fan to the palm-rest and keyboard assembly.
4. Lift the fan from its outer edge and slide it away from the palm-rest and keyboard assembly.
Installing the graphics-card fan
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the graphics-card fan and provide a visual representation of the installation
procedure.
60
Removing and installing Field Replaceable Units (FRUs)
