About this task
The figure indicates the location of the heat sink and provides a visual representation of the removal procedure.

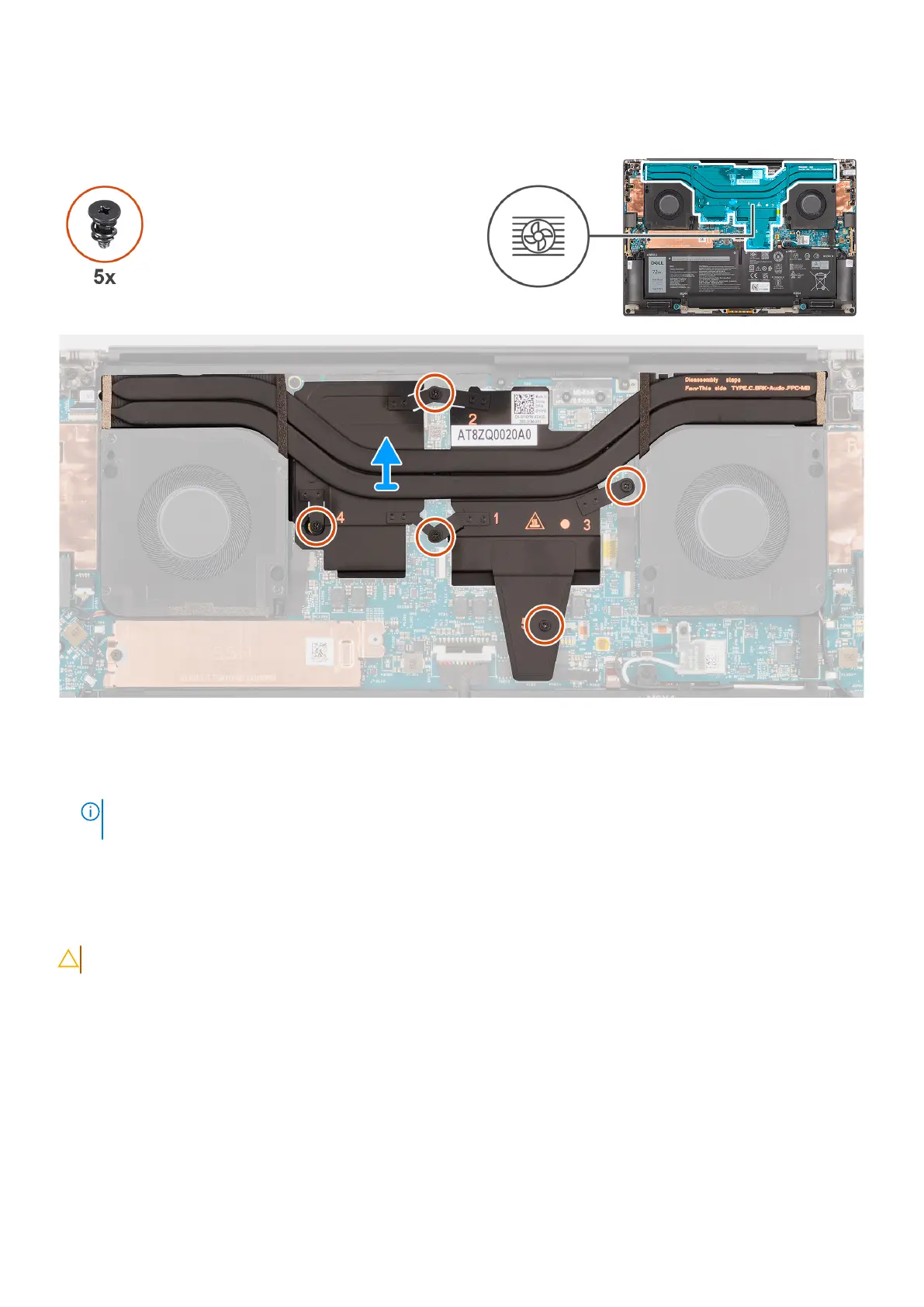

Figure 46. Removing the heat sink for discrete graphics
Steps
1. Loosen the five captive screws that secure the heat sink to the system board.
NOTE:
Loosen the captive screws in the order that is marked on the heat sink assembly next to the screws [5 > 4 > 3 >
2 > 1].
2. Carefully lift the heat sink to remove it from the system board.
Installing the heat sink for discrete graphics
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the heat sink and provides a visual representation of the installation procedure.
64
Removing and installing Field Replaceable Units (FRUs)
