Installing the smart-card reader
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the smart-card reader and provides a visual representation of the installation procedure.

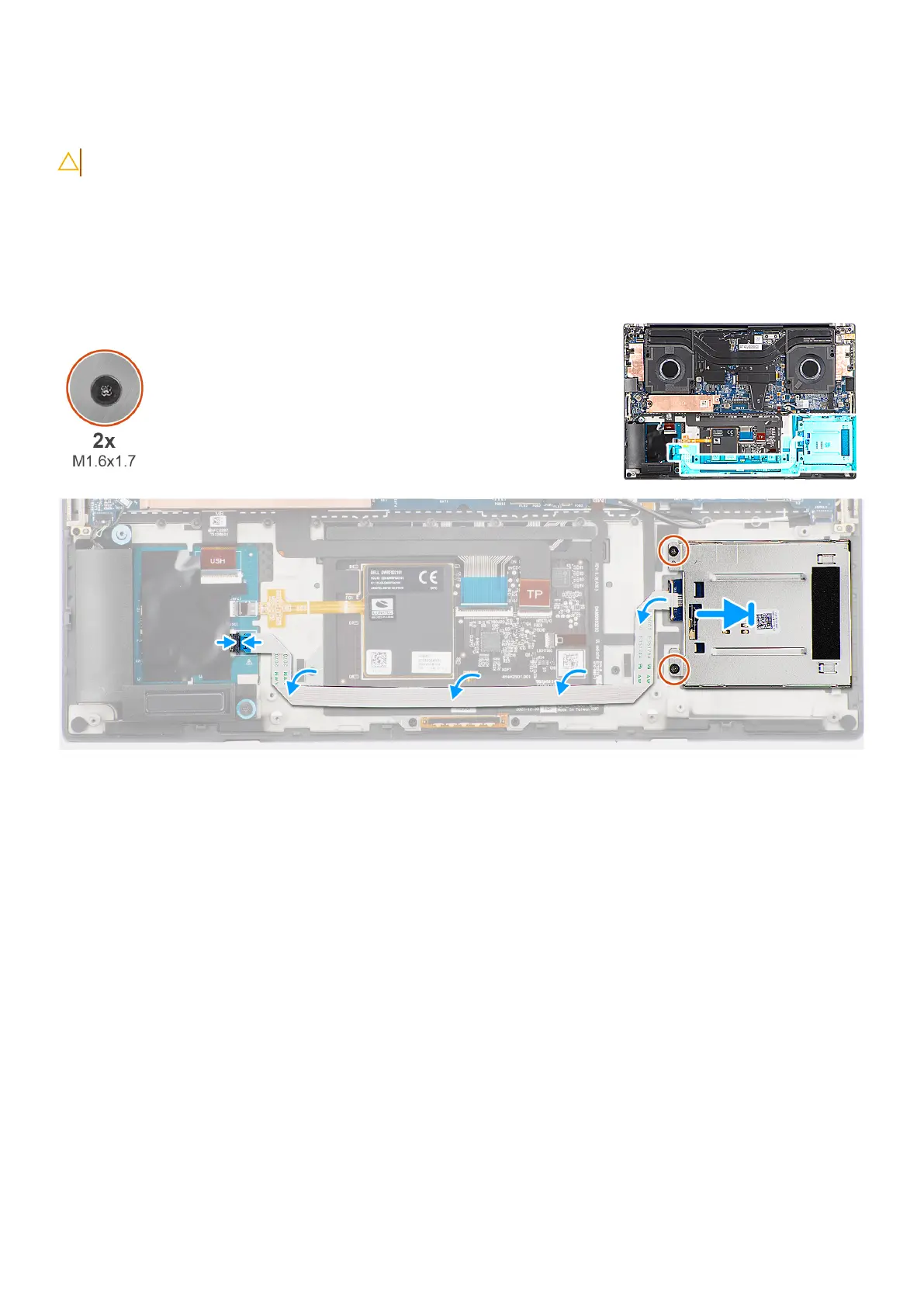

Figure 53. Installing the smart-card reader
Steps
1. Align and place the smart-card reader into its slot on the palm-rest and keyboard assembly.
2. Replace the two screws (M1.6x1.7) to secure the smart-card reader to the palm-rest and keyboard assembly.
3. Adhere the smart-card reader FFC to the palm-rest and keyboard assembly.
4. Connect the smart-card reader FFC to the connector on the USH board.
Next steps
1. Install the speakers.
2. Install the battery.
3. Install the base cover.
4. Follow the procedure in After working inside your computer.
72
Removing and installing Field Replaceable Units (FRUs)
