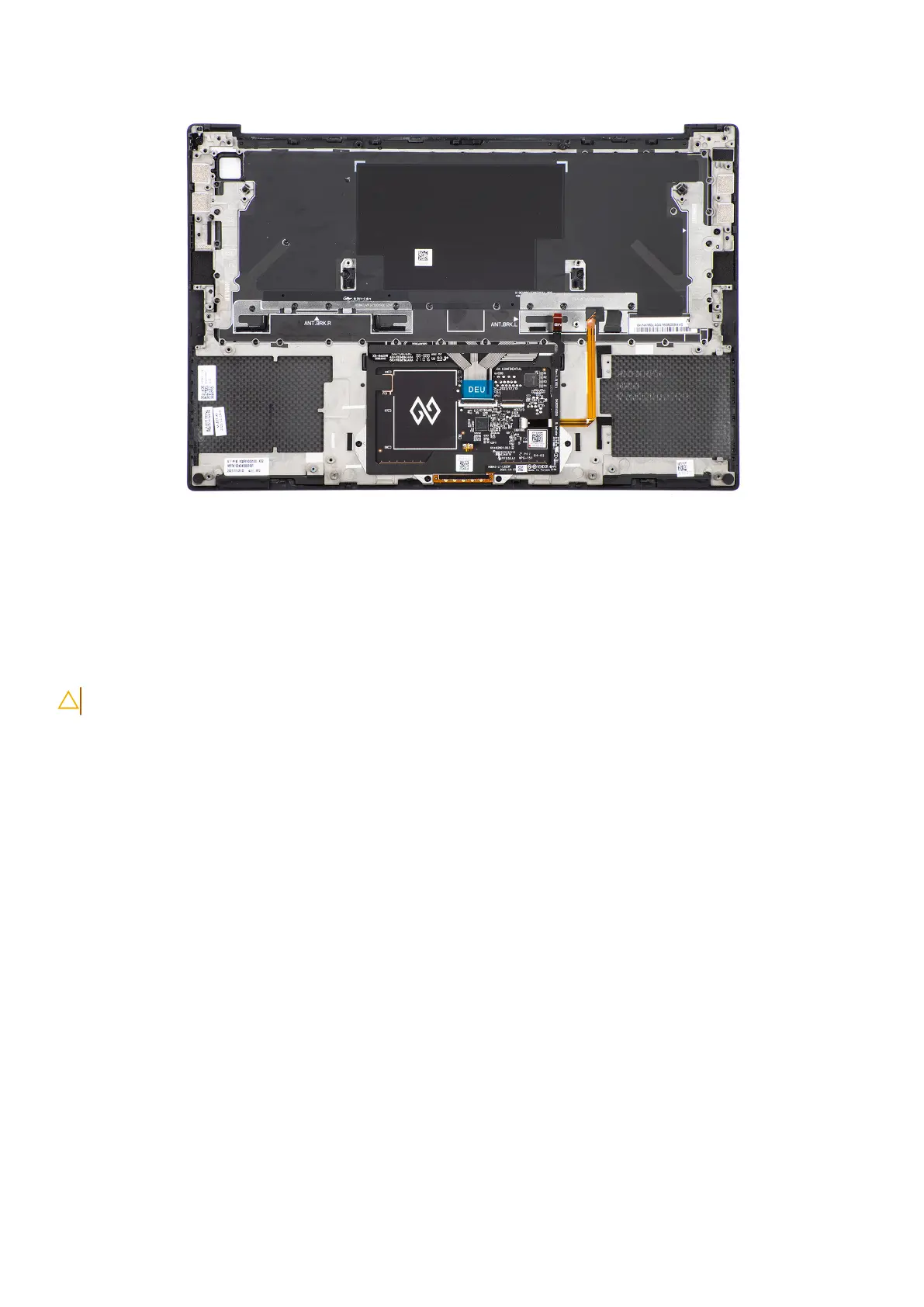

Figure 75. Removing the palm-rest and keyboard assembly
Steps
After performing the steps in the pre-requisites, we are left with the palm-rest and keyboard assembly.
Installing the palm-rest and keyboard assembly
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the palm-rest and keyboard assembly and provides a visual representation of the installation
procedure.
Removing and installing Field Replaceable Units (FRUs)
97
