Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following images indicate the location of the processor fan and provide a visual representation of the removal procedure.

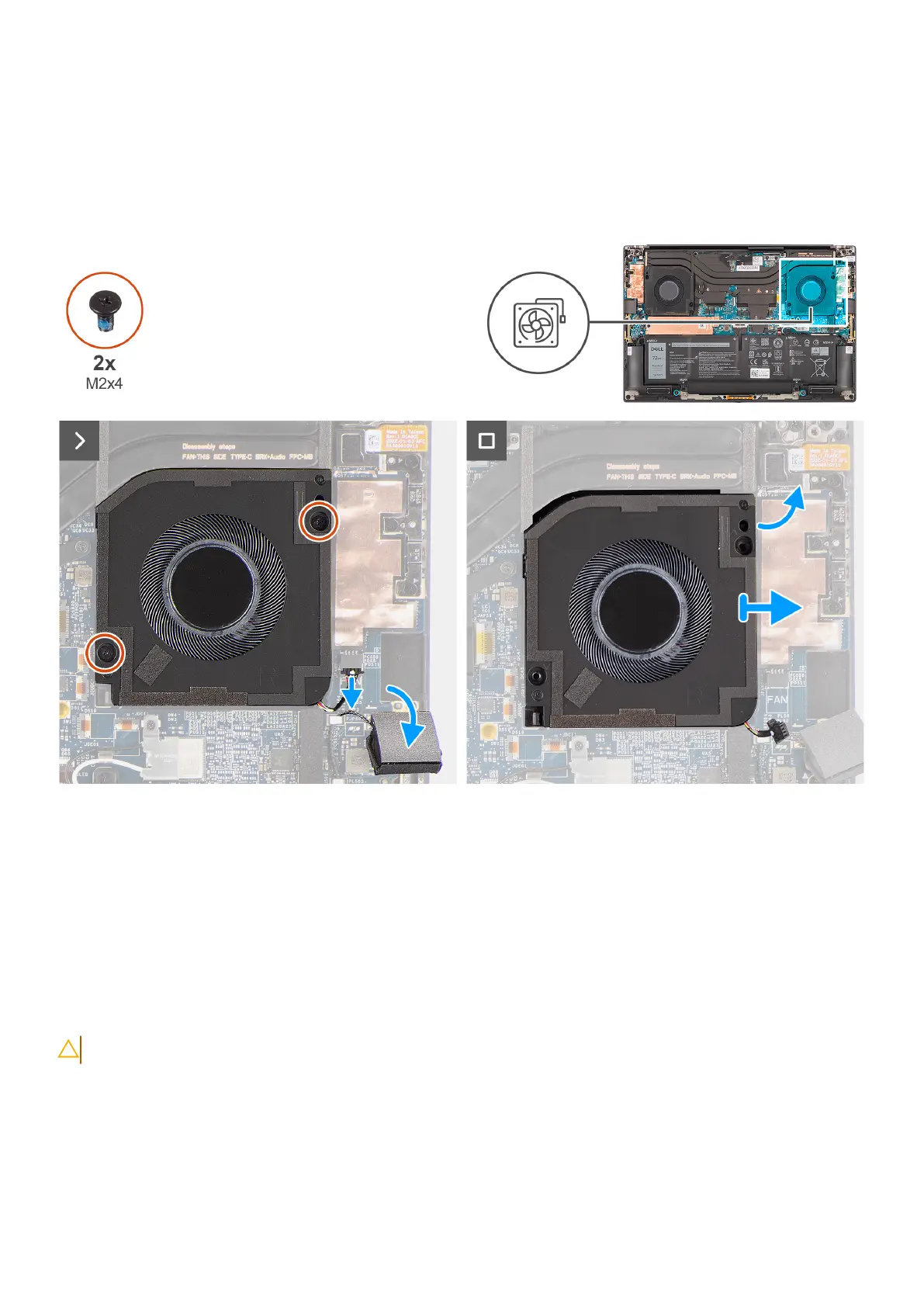

Figure 40. Removing the processor fan
Steps
1. Carefully peel off the tweeter speaker from its compartment next to the fan connector to create more space to disconnect
the fan cable.
2. Disconnect the processor fan cable from the connector on the system board.
3. Remove the two screws (M2x4) that secure the processor fan to the palm-rest and keyboard assembly.
4. Lift the fan from its outer edge and slide it away from the palm-rest and keyboard assembly.
Installing the processor fan
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
58
Removing and installing Field Replaceable Units (FRUs)
