● Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, and the quantity of screws,
and then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.

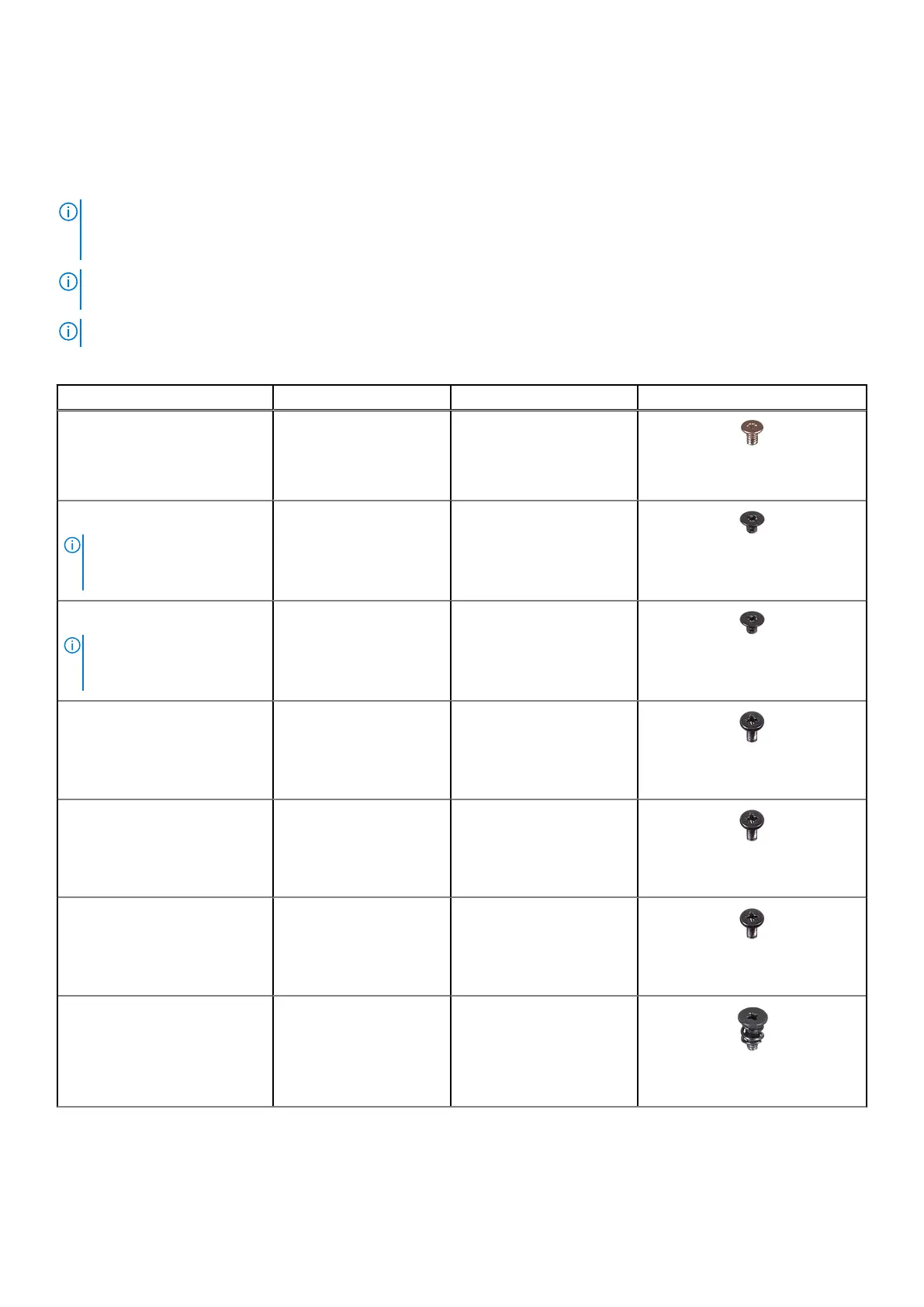

Table 32. Screw list
Component Screw type Quantity Screw image
Base cover T5, M2x3 8
Figure 8. T5, M2x3
M.2 2230 solid state drive
NOTE: For computers
shipped with M.2 2230 solid
state drive.
M2x2 2
Figure 9. M2x2
M.2 2280 solid state drive
NOTE: For computers
shipped with M.2 2280 solid
state drive.
M2x2 1
Figure 10. M2x2
Battery M2x4 5
Figure 11. M2x4
Left fan M2x4 2
Figure 12. M2x4
Right fan M2x4 2
Figure 13. M2x4
Heat-sink for integrated
graphics
Captive screw 4
Figure 14. Captive screw
38 Working inside your computer
