Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Smart-card reader
Removing the smart-card reader
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the speakers.
About this task
The figure indicates the location of the smart-card reader and provides a visual representation of the removal procedure.

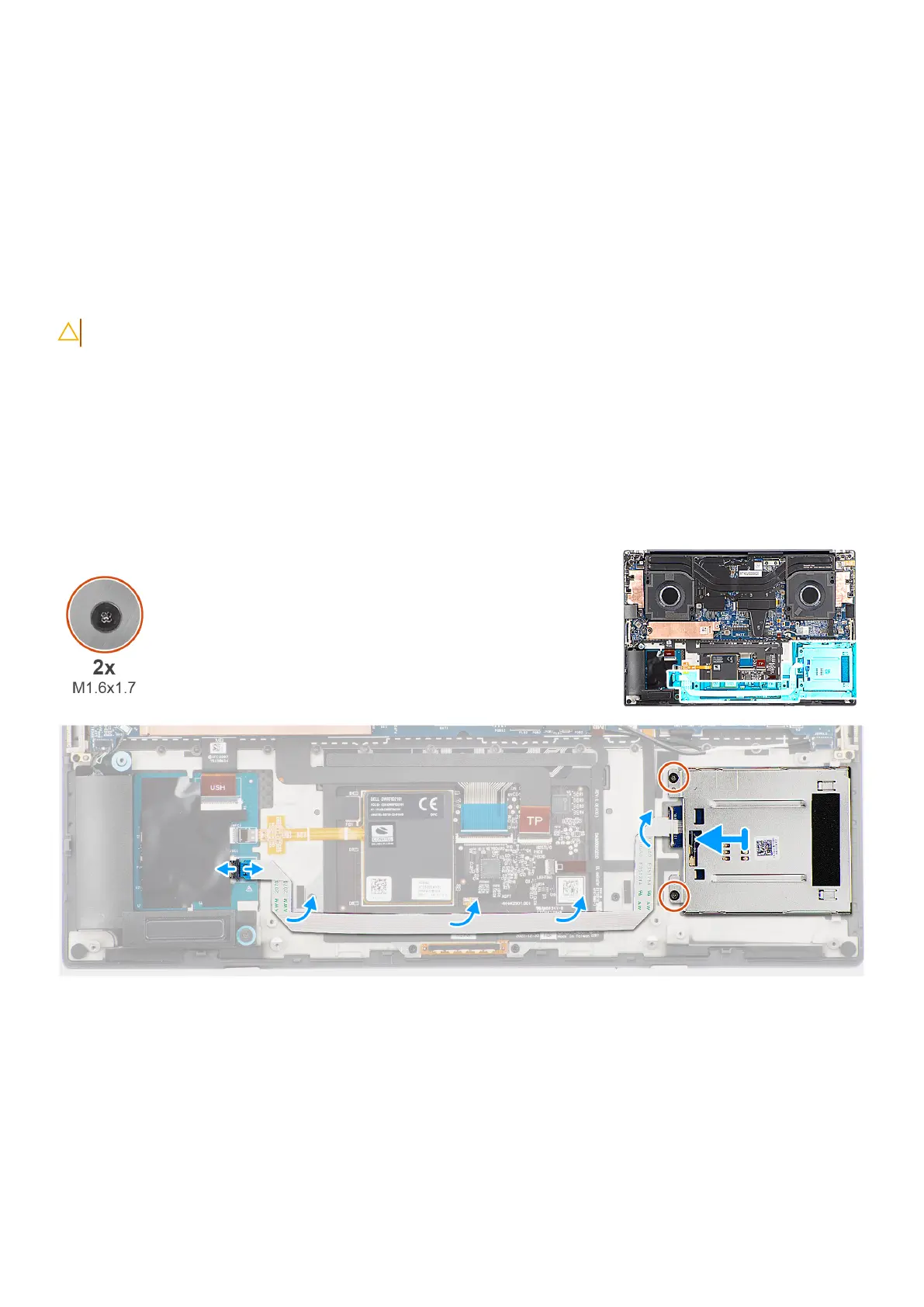

Figure 52. Removing the smart-card reader
Steps
1. Disconnect the smart-card reader FFC from the connector on the USH board.
2. Peel the smart-card reader FFC from the palm-rest and keyboard assembly.
3. Remove the two screws (M1.6x1.7) that secure the smart-card reader to the palm-rest and keyboard assembly.
4. Lift the smart-card reader module away from the palm-rest and keyboard assembly.
Removing and installing Field Replaceable Units (FRUs)
71
