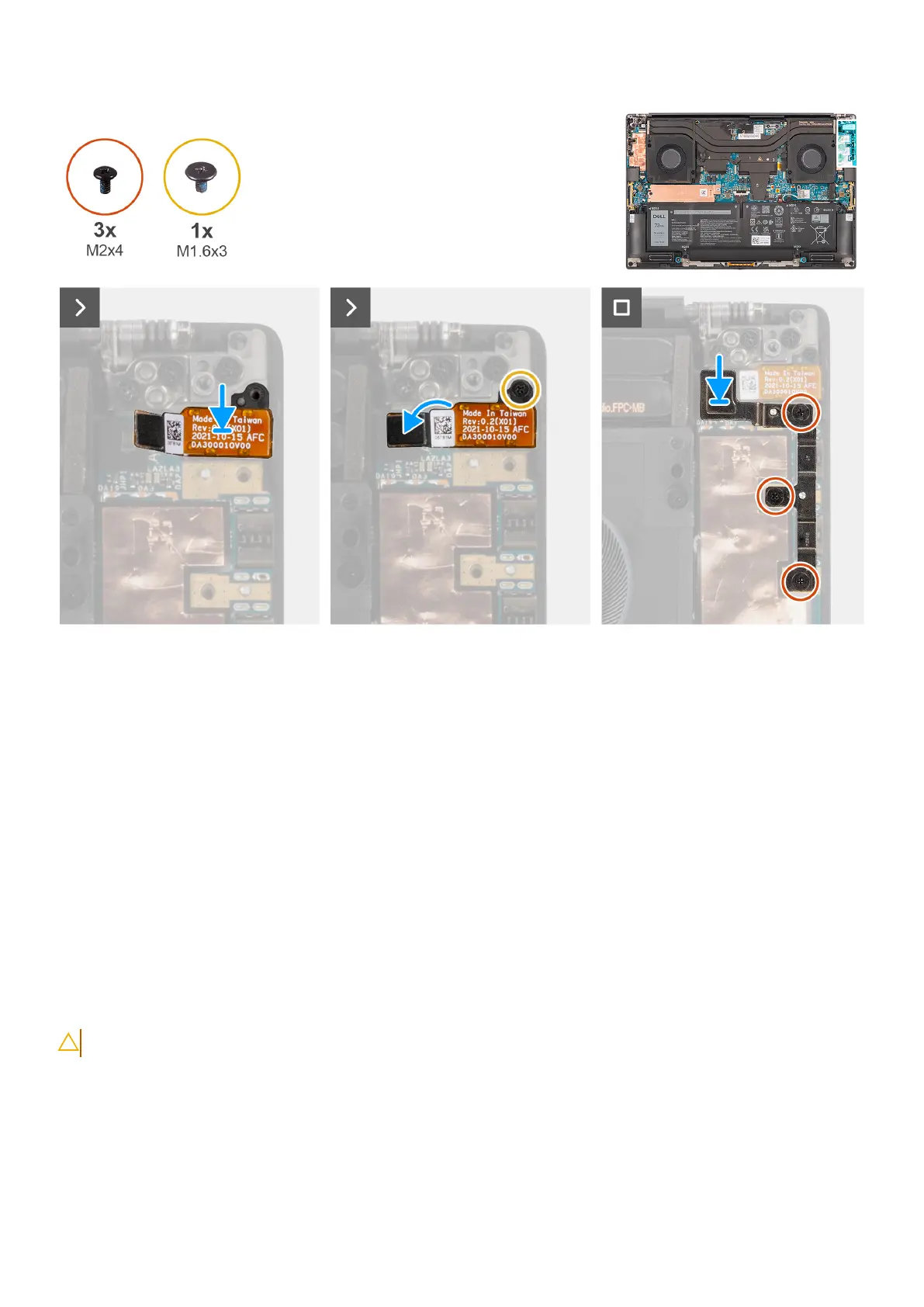

Figure 49. Installing the audio jack
Steps
1. Align and place the audio jack in its slot on the palm-rest and keyboard assembly.
2. Connect the audio-jack FPC to the connector on the system board.
3. Replace the screw (M1.6x3) to secure the audio jack to the system board.
4. Align and place the left USB Type-C bracket on the system board.
5. Replace the three screws (M2x4) to secure the left USB Type-C bracket to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Speakers
Removing the speaker
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
