4. Slide the thermal plate into place over the SSD so that the tab on the plate is inserted into the securing peg on the system
board.
5. Replace the screw (M2x2) that secures the SSD thermal plate to the M.2 2230 solid state drive bracket.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Removing the M.2 2280 solid state drive
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
NOTE: For computers shipped with M.2 2280 solid state drive.
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The figure indicates the location of the M.2 2280 solid state drive and provides a visual representation of the removal
procedure.

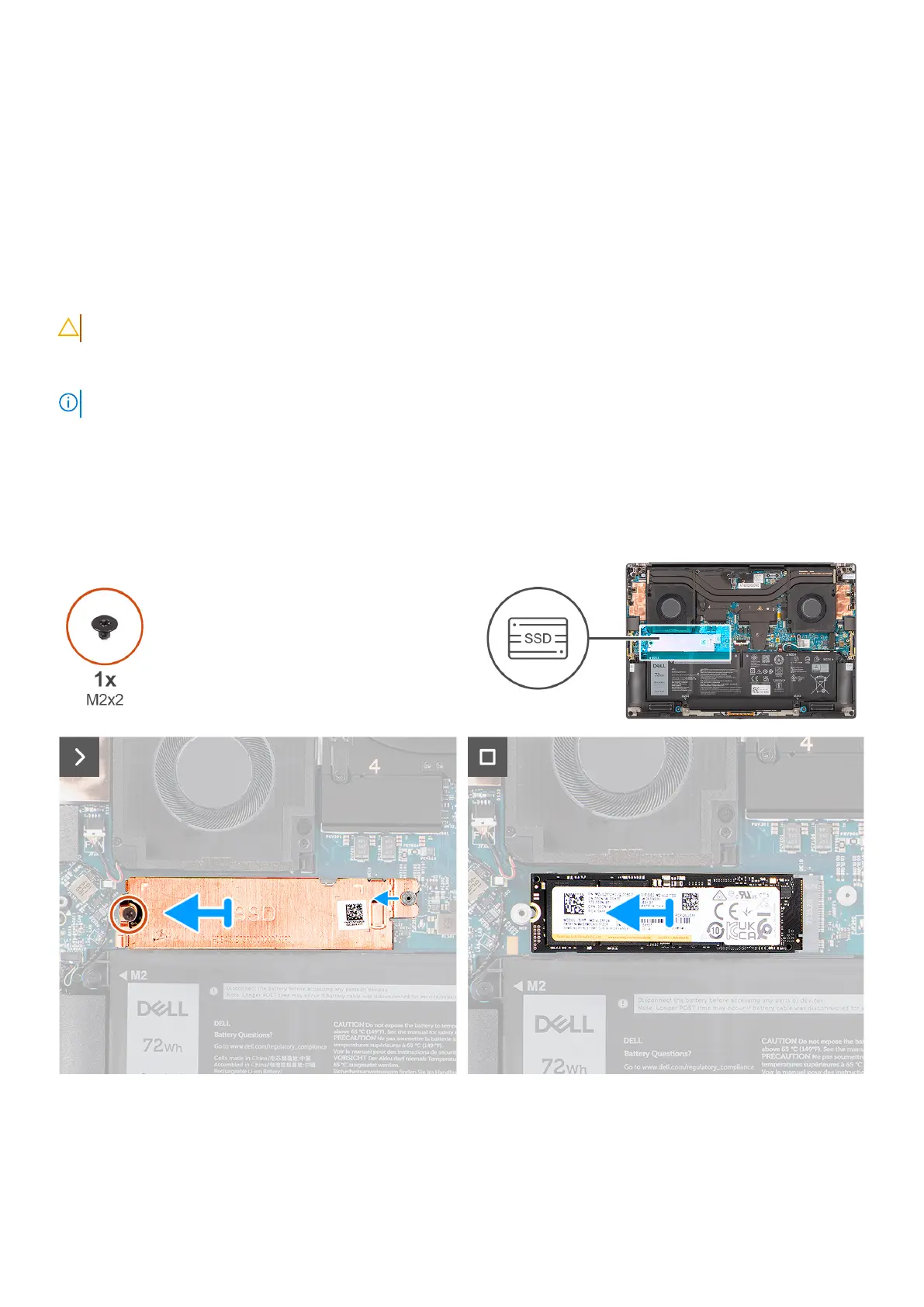

Figure 36. Removing the M.2 2280 solid-state drive
Steps
1. Remove the screw (M2x2) that secures the SSD thermal plate to the M.2 2280 solid state drive.
Removing and installing Field Replaceable Units (FRUs)
53
