About this task
The following images indicate the location of the processor fan and provide a visual representation of the installation procedure.

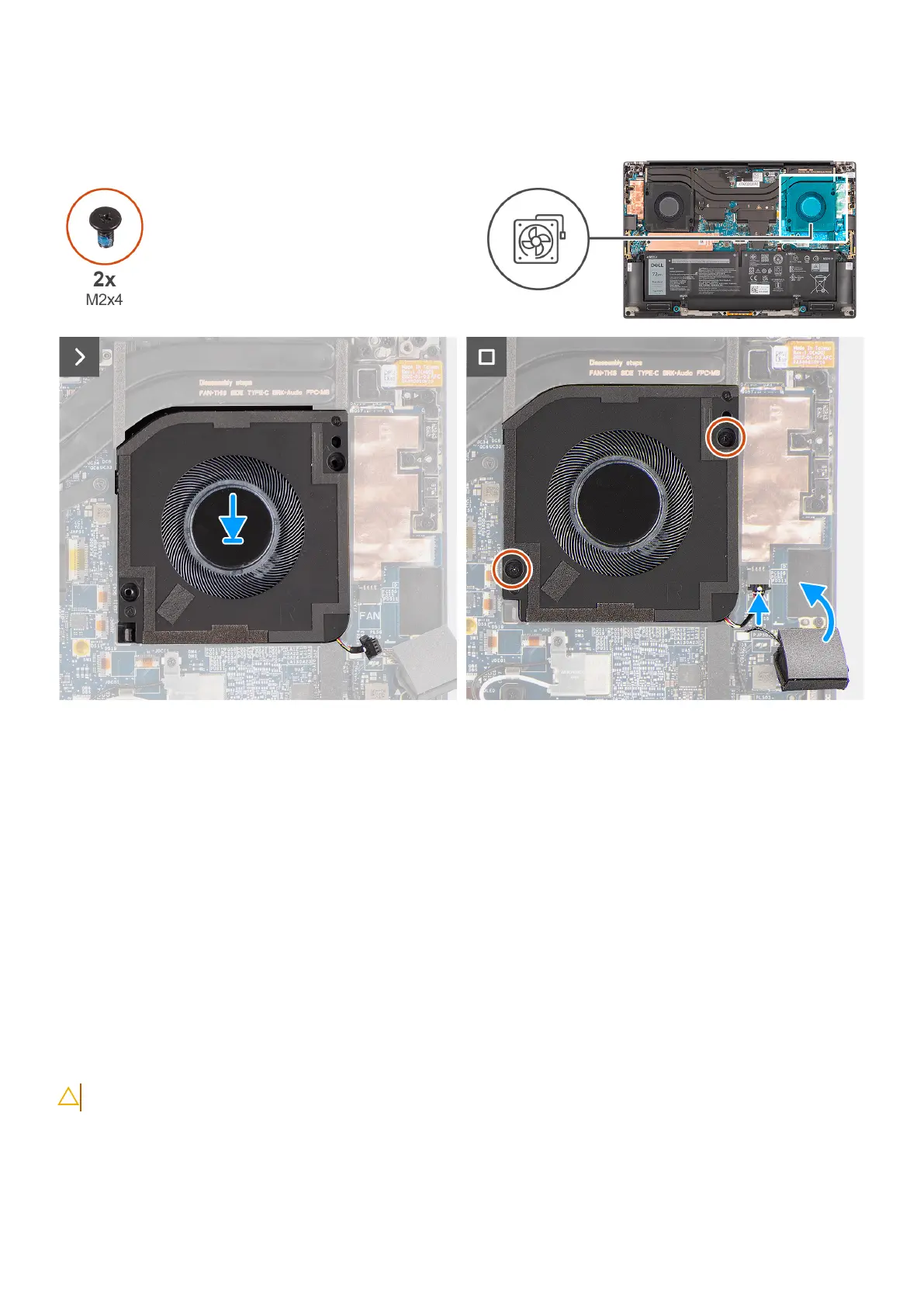

Figure 41. Installing the processor fan
Steps
1. Align the screw holes on the processor fan with the screw holes on the palm-rest and keyboard assembly.
2. Replace the two screws (M2x4) to secure the processor fan to the palm-rest and keyboard assembly.
3. Connect the processor fan cable to the connector on the system board.
4. Adhere the tweeter speaker in its compartment on the palm-rest and keyboard assembly.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Graphics-card fan
Removing the graphics-card fan
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
Removing and installing Field Replaceable Units (FRUs)
