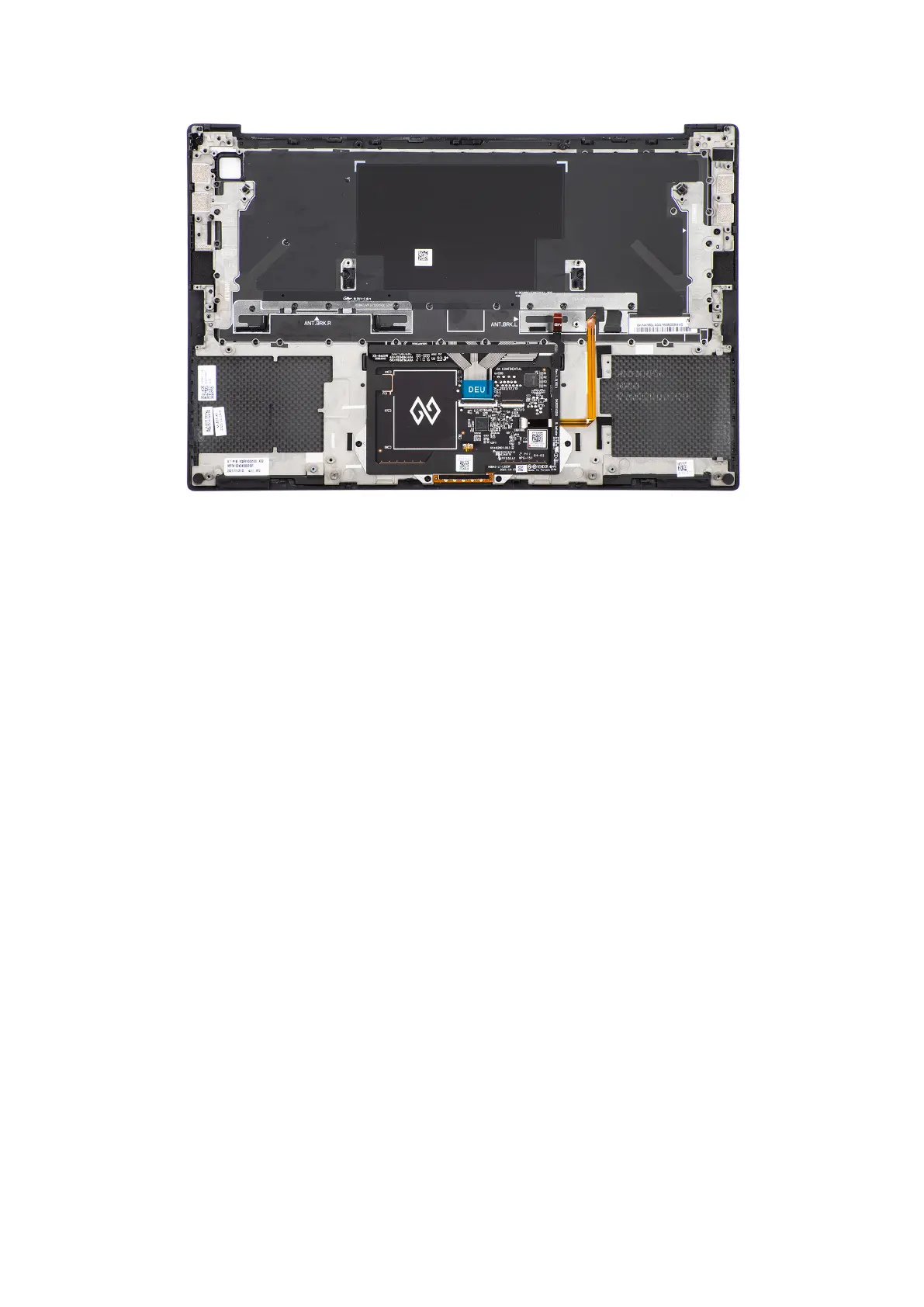

Figure 76. Installing the palm-rest and keyboard assembly
Steps
1. Place the palm-rest assembly on a flat surface.
2. Perform the steps in the postrequisites.
Next steps
1. Install the WLAN antennas.
2. Install the power-button board with finger print reader.
3. Install the system board.
4. Install the display assembly.
5. Install the speakers.
6. Install the audio jack.
7. Install the graphics-card fan.
8. Install the processor fan.
9. Install the battery.
10. Install the M.2 2230 solid state drive or M.2 2280 solid state drive.
11. Install the base cover.
12. Follow the procedure in After working inside your computer.
98
Removing and installing Field Replaceable Units (FRUs)
