Steps

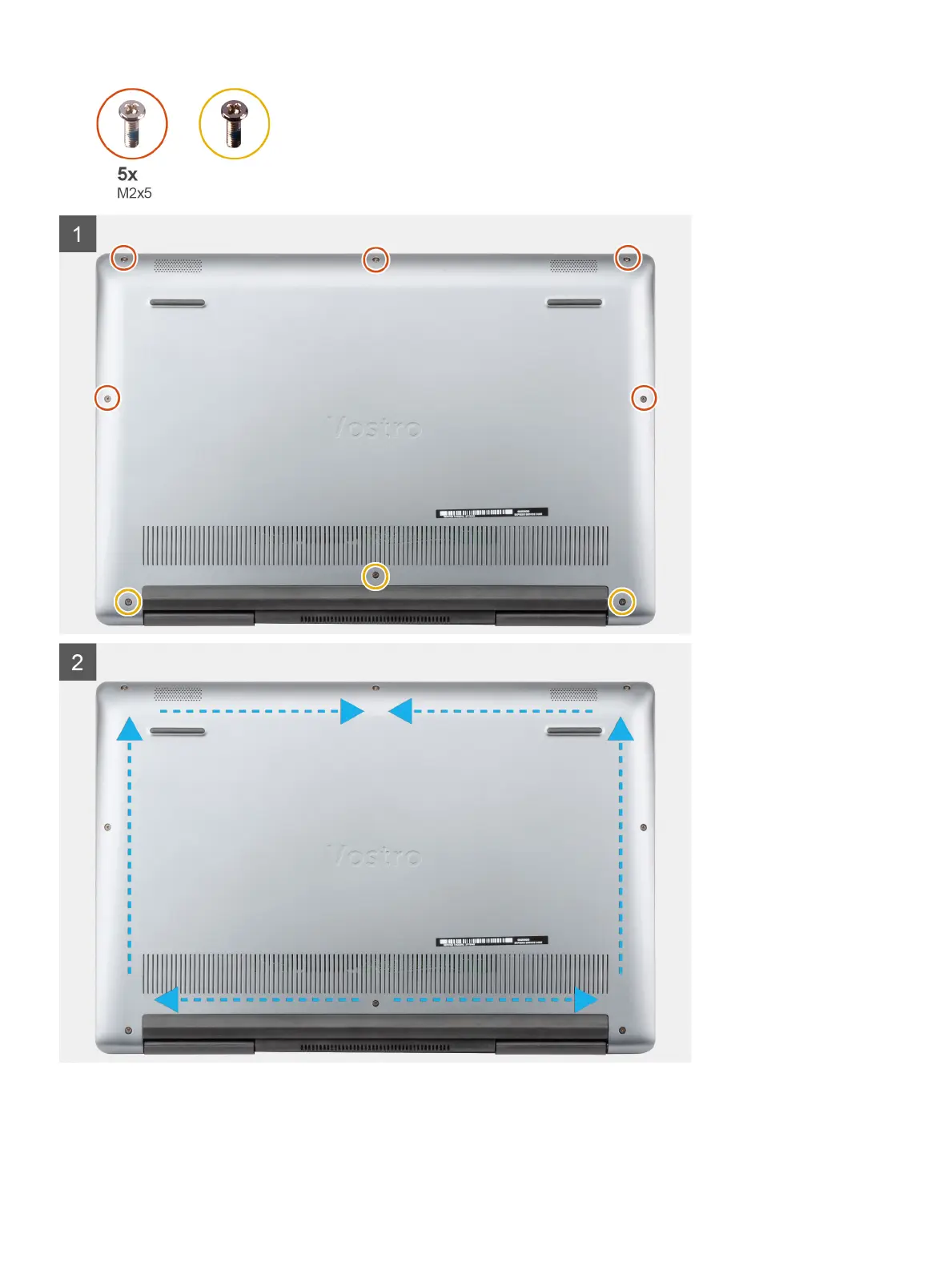

1 Remove the ve screws (M2x5) that secure the base cover to the palm-rest and keyboard assembly.
2 Loosen the three captive screws that secure the base cover to the palm-rest and keyboard assembly.
12
Disassembly and reassembly
