Steps

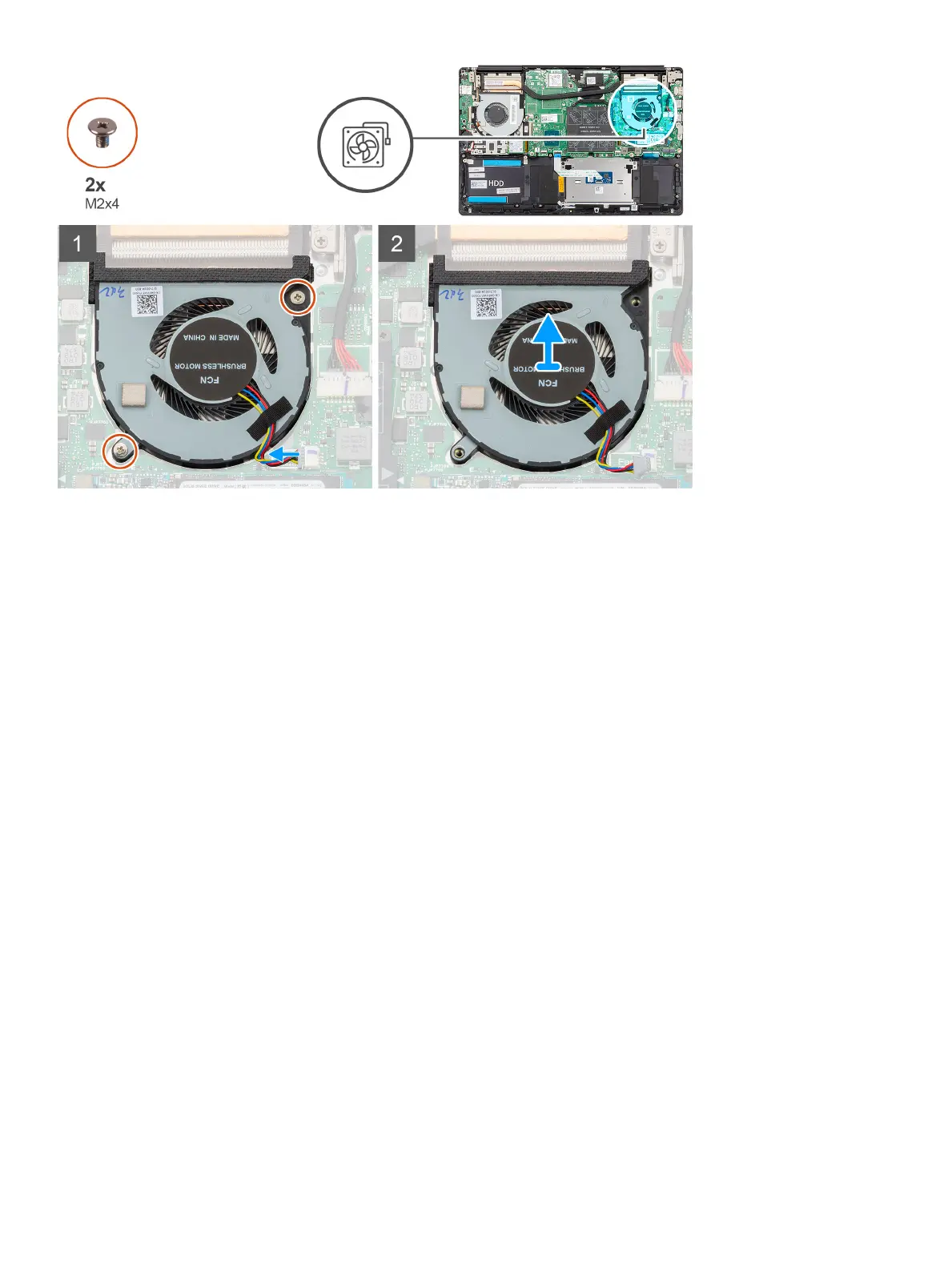

1 Remove the two (M2x4) screws that secure the CPU fan to the palm-rest and keyboard assembly.
2 Disconnect the CPU fan cable from the system board.
3 Slide and lift the CPU fan o the palm-rest and keyboard assembly.
Installing the CPU fan
Prerequisite
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The gure indicates the location of the CPU fan and provides a visual representation of the installation procedure.
36
Disassembly and reassembly
