Steps

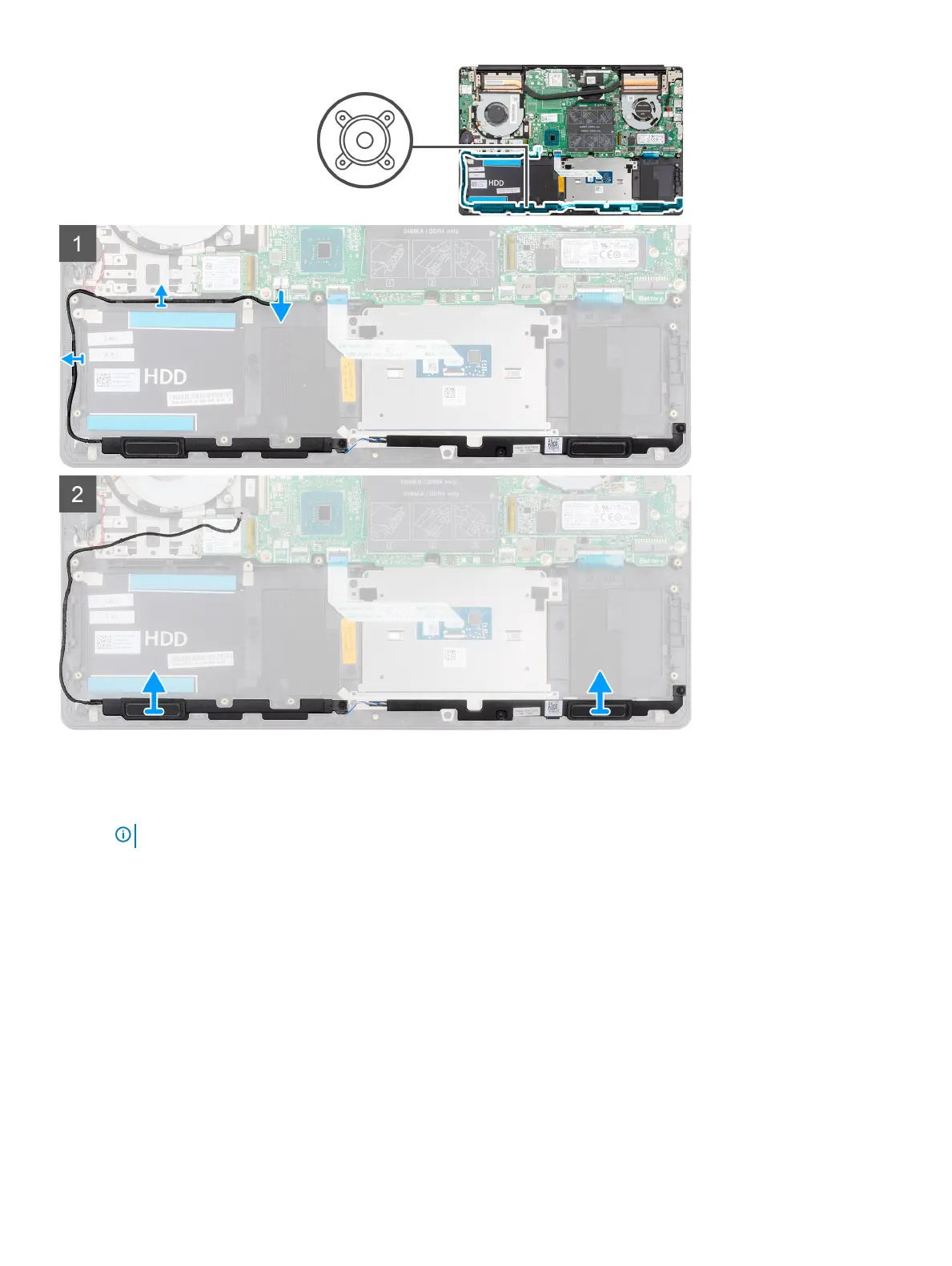

1 Disconnect the speaker cable from the system board.
2 Note the routing of the speaker cable and remove the speaker cable from the routing guides on the palm-rest and keyboard assembly.
NOTE
: Note the position of the rubber grommets before lifting the speakers.
3 Lift the speakers, along with the cable, o the palm-rest and keyboard assembly.
Installing the speakers
Prerequisite
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The gure indicates the location of the speakers and provides a visual representation of the installation procedure.
32
Disassembly and reassembly
