Steps

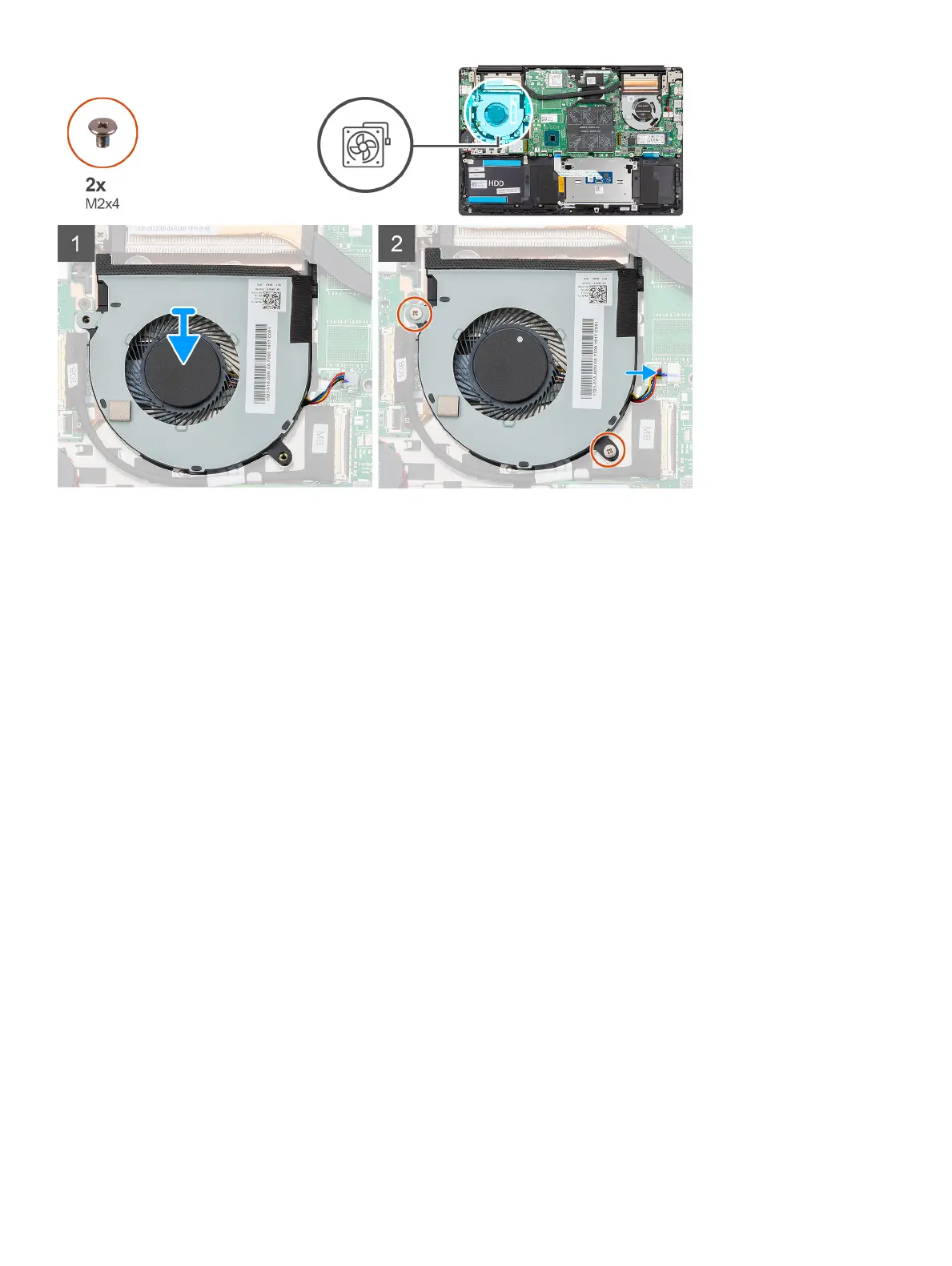

1 Slide and place the GPU fan on the palm-rest and keyboard assembly.
2 Align the screw holes on the GPU fan with the screw holes on the palm-rest and keyboard assembly.
3 Replace the two (M2x4) screws to secure the GPU fan to the palm-rest and keyboard assembly.
4 Connect the GPU fan cable to the system board.
Next step
1 Install the battery.
2 Install the base cover.
3 Follow the procedure in After working inside your computer.
CPU fan
Removing the CPU fan
Prerequisites
1 Follow the procedure in Before working inside your computer.
2 Remove the base cover.
3 Remove the battery.
About this task
The gure indicates the location of the CPU fan and provides a visual representation of the removal procedure.
Disassembly and reassembly
35
