Steps

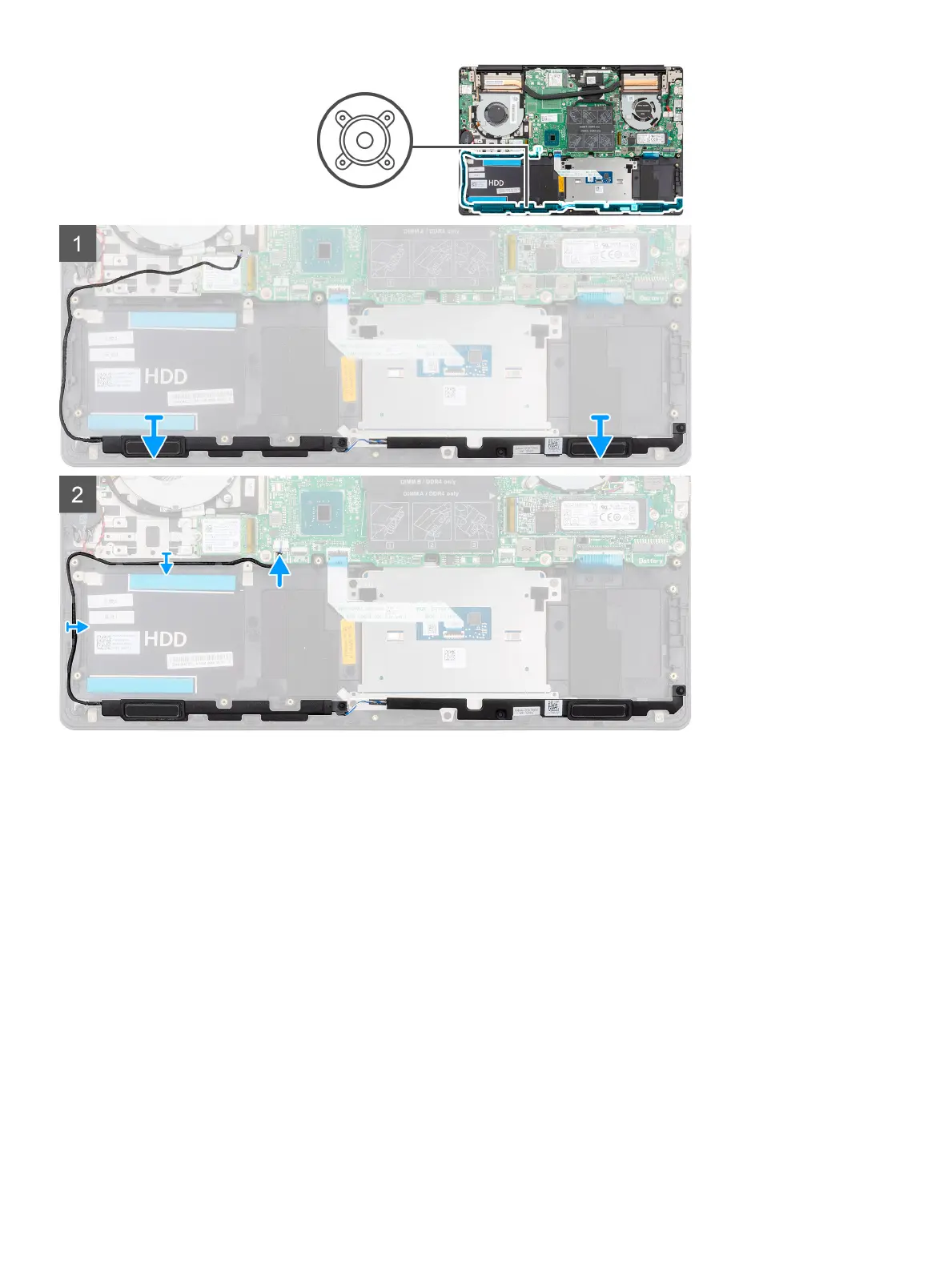

1 Using the alignment posts and rubber grommets, place the speakers in the slots on the palm-rest and keyboard assembly.
2 Route the speaker cable through the routing guides on the palm-rest and keyboard assembly.
3 Connect the speaker cable to the system board.
Next step
1 Install the battery.
2 Install the base cover.
3 Follow the procedure in After working inside your computer.
Graphics Processing Unit (GPU) fan
Removing the GPU fan
Prerequisites
1 Follow the procedure in Before working inside your computer.
Disassembly and reassembly
33
