Dell Vostro 7590 - Heat Sink; Removing the Heat Sink-UMA

Steps

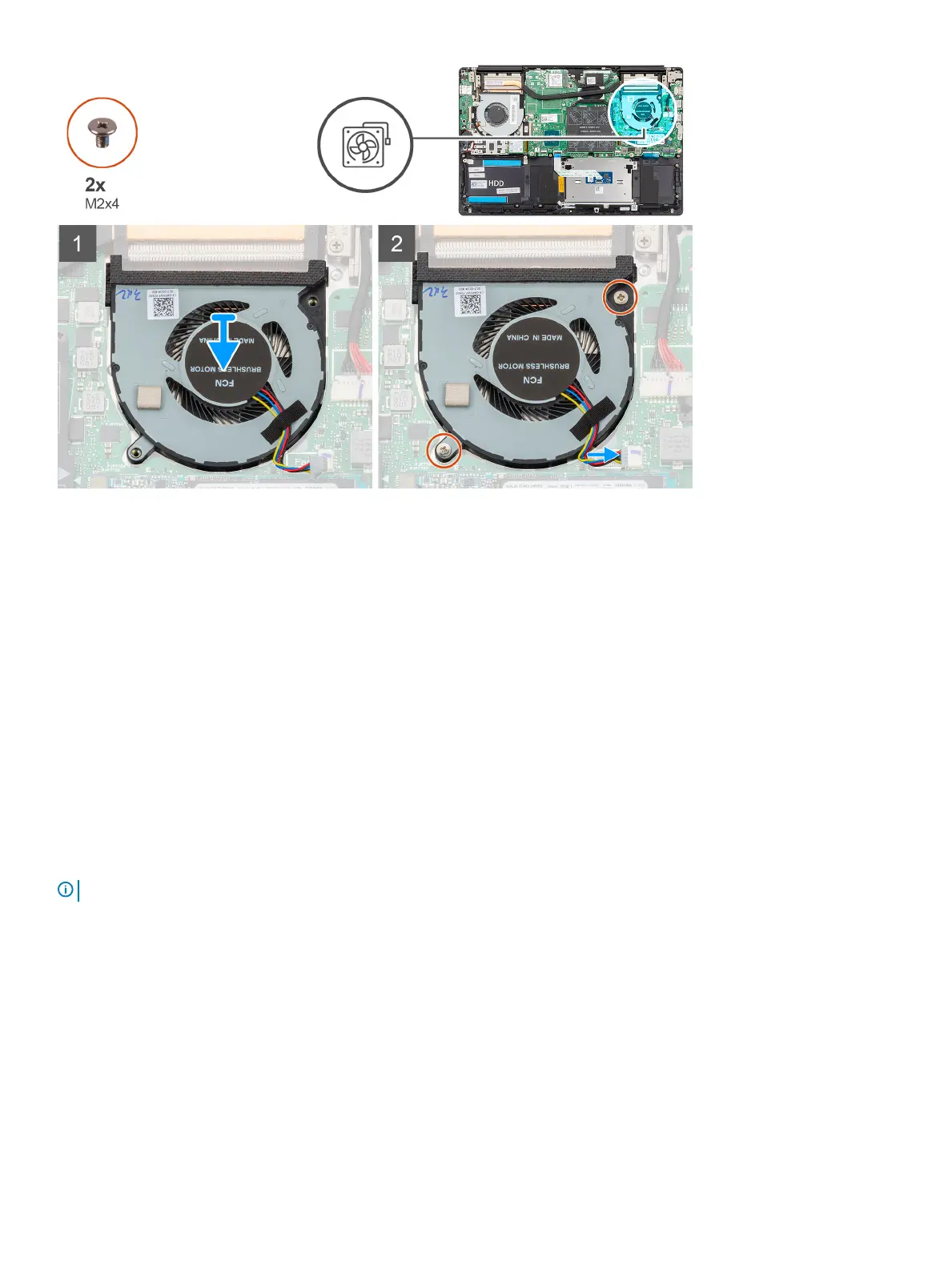

1 Slide and place the CPU fan on the palm-rest and keyboard assembly.
2 Align the screw holes on the CPU fan with the screw holes on the palm-rest and keyboard assembly.
3 Replace the two (M2x4) screws to secure the CPU fan to the palm-rest and keyboard assembly.
4 Connect the CPU fan cable to the system board.
Next step
1 Install the battery.
2 Install the base cover.
3 Follow the procedure in After working inside your computer.
Heat sink
Removing the heat sink—UMA
NOTE
: The heat sink type in your computer varies depending on the conguration ordered.
Prerequisites
1 Follow the procedure in Before working inside your computer.
2 Remove the base cover.
3 Remove the battery.
4 Remove the GPU fan.
5 Remove the CPU fan.
About this task
The gure indicates the location of the heat sink and provides a visual representation of the removal procedure.
