Steps

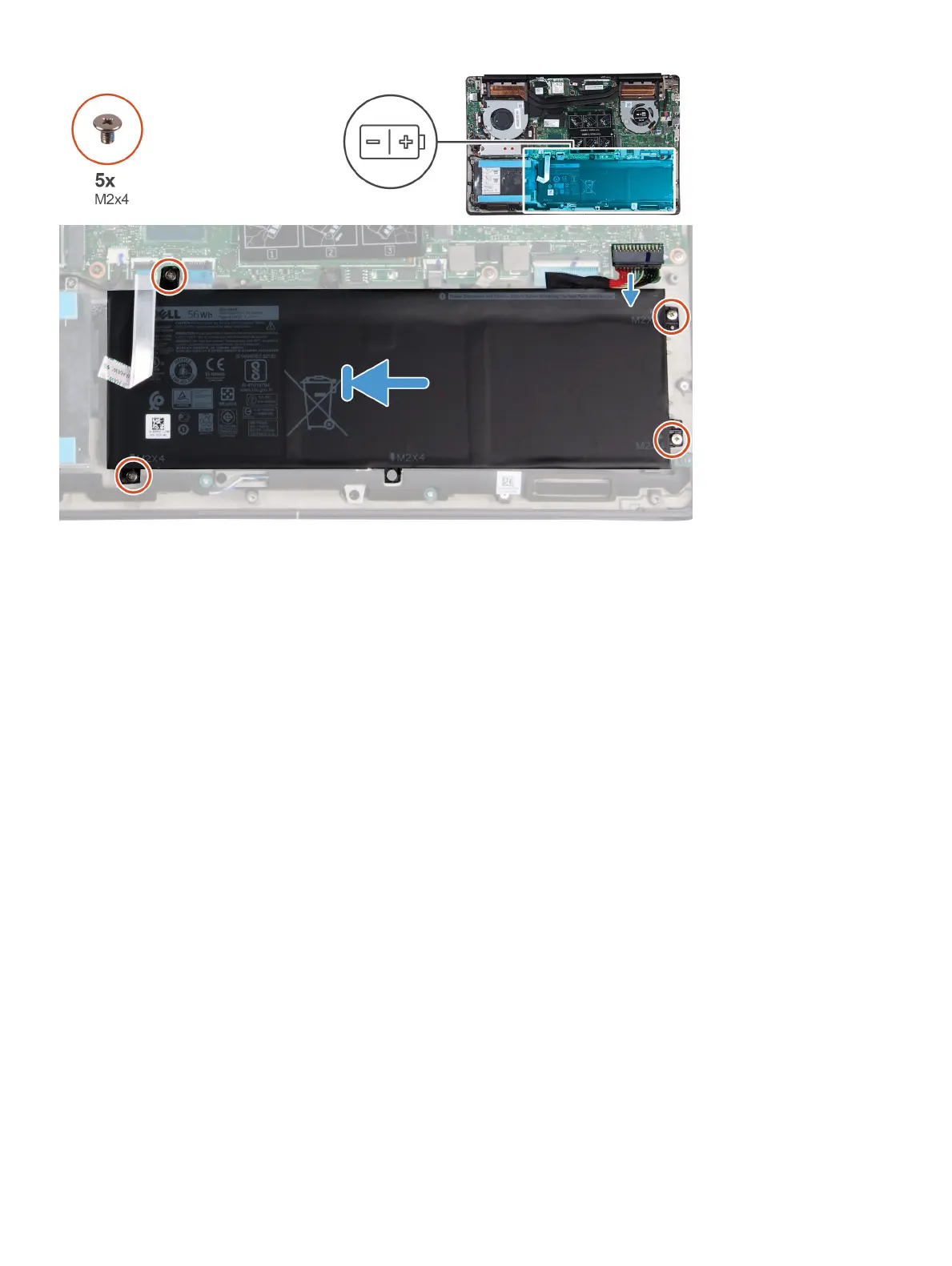

1 Place the battery on the palm-rest and keyboard assembly and align the screw holes on the battery with the screw holes on the palm-
rest and keyboard assembly.
2 Install the four screws (M2x4) that secure the battery to the system board and palm-rest and keyboard assembly.
3 Connect the battery cable to the system board.
Next steps
1 Install the base cover.
2 Follow the procedure in After working inside your computer.
WLAN card
Removing the WLAN card
Prerequisites
1 Follow the procedure in Before working inside your computer.
2 Remove the base cover.
3 Remove the battery.
About this task
The gure indicates the location of the WLAN card and provides a visual representation of the removal procedure.
18
Disassembly and reassembly
