Steps

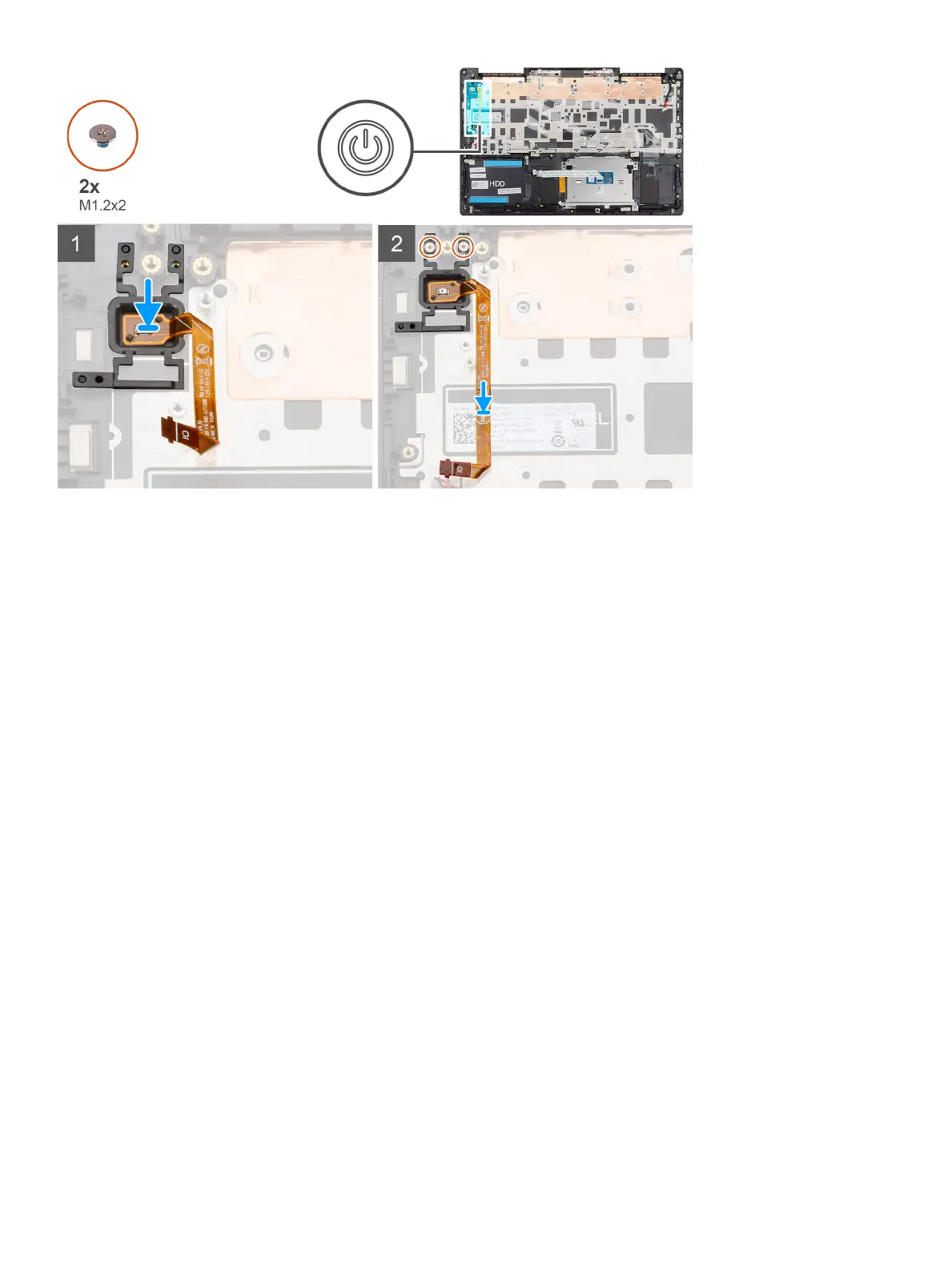

1 Using the alignment post, place the power button with optional ngerprint reader on the palm-rest and keyboard assembly.
2 Replace the two screws (M1.2x2) to secure the power button with optional ngerprint reader to the palm-rest and keyboard assembly.
Next step
1 Install the I/O board.
2 Install the GPU fan.
3 Install the WLAN card.
4 Install the battery.
5 Install the base cover.
6 Follow the procedure in After working inside your computer.
Power-adapter port
Removing the power-adapter port
Prerequisites
1 Follow the procedure in Before working inside your computer.
2 Remove the base cover.
3 Remove the battery.
About this task
The gure indicates the location of the power-adapter port and provides a visual representation of the removal procedure.
