Steps

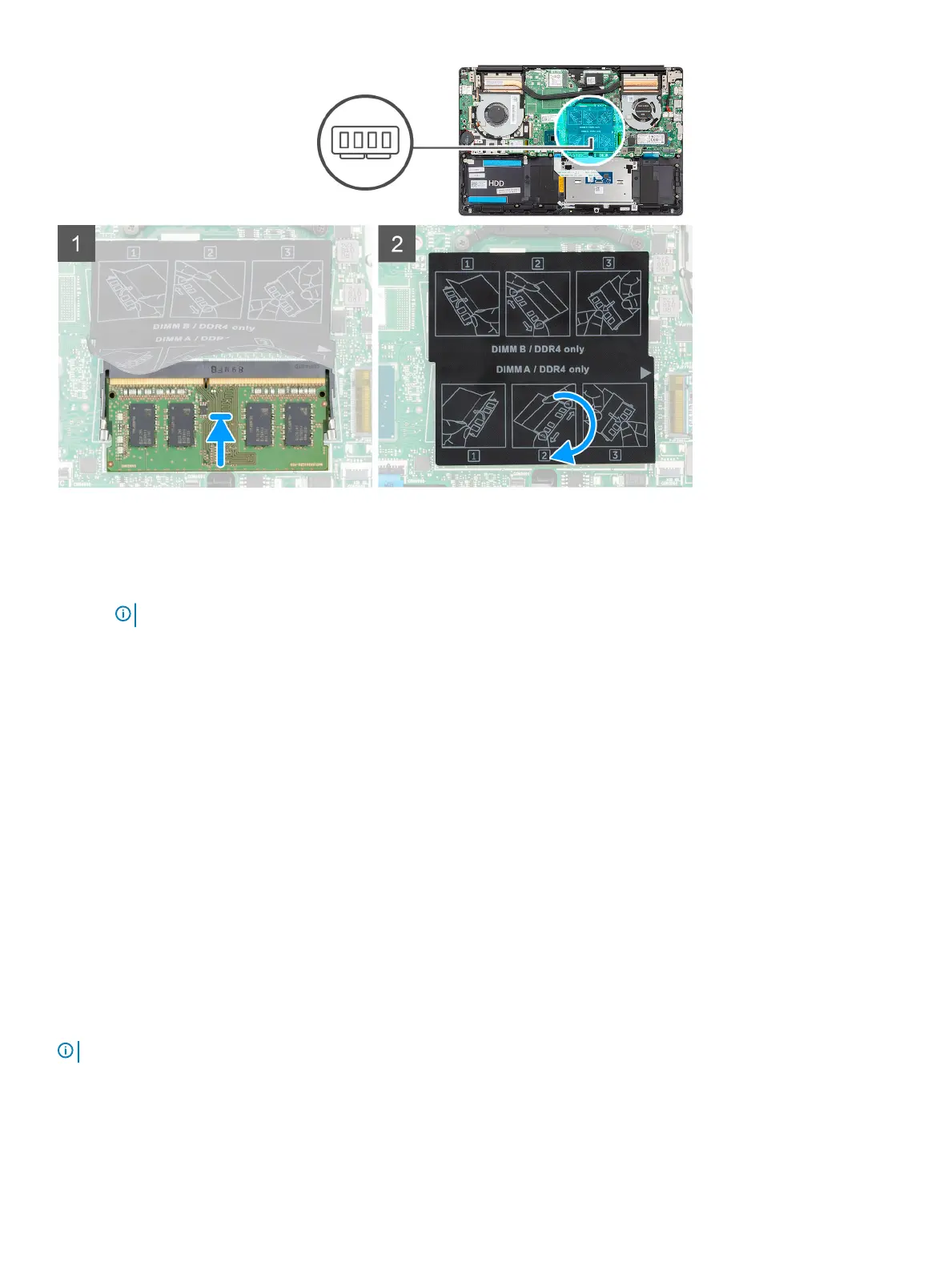

1 Lift the mylar and align the notch on the memory module with the tab on the memory-module slot.
2 Slide the memory module rmly into the slot at an angle.
3 Press the memory module down until it clicks into place.
NOTE
: If you do not hear the click, remove the memory module and reinstall it.
Next step
1 Connect the battery cable.
2 Install the base cover.
3 Follow the procedure in After working inside your computer.
Solid-state drive
Removing the M.2 2280 solid-state drive
Prerequisites
1 Follow the procedure in Before working inside your computer.
2 Remove the base cover.
3 Disconnect the battery cable.
About this task
The gure indicates the location of the solid-state drive and provides a visual representation of the removal procedure.
NOTE
: The computer is shipped with solid-state drive shield only if the solid-state drive capacity is more than 512 GB.
22 Disassembly and reassembly
