Dell Vostro 7590 - Installing the GPU Fan

2 Remove the base cover.
3 Remove the battery.
About this task

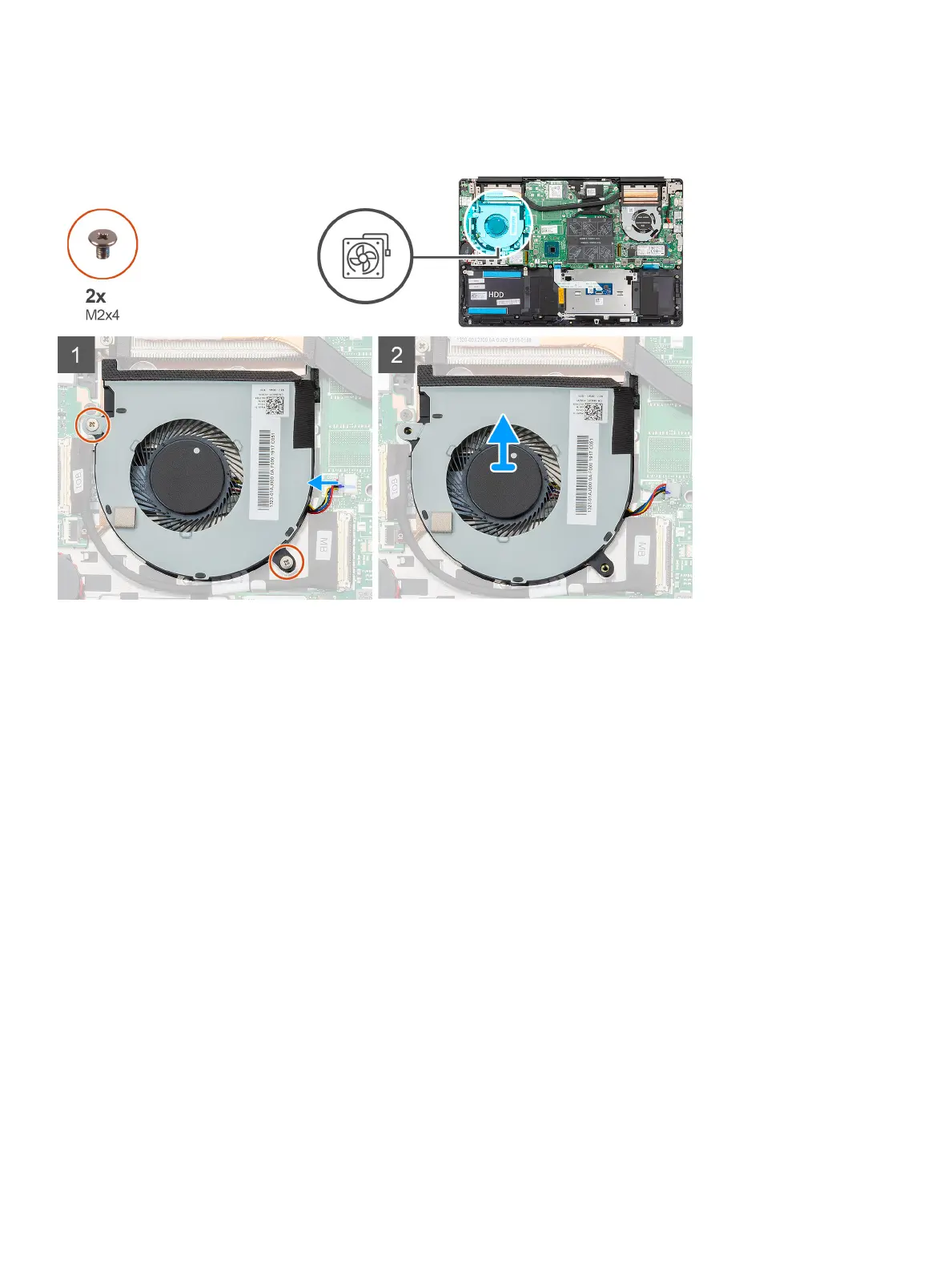

The gure indicates the location of the GPU fan and provides a visual representation of the removal procedure.
Steps
1 Remove the two (M2x4) screws that secure the GPU fan to the palm-rest and keyboard assembly.
2 Disconnect the GPU fan cable from the system board.
3 Slide and lift the GPU fan o the palm-rest and keyboard assembly.
Installing the GPU fan
Prerequisite
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The gure indicates the location of the GPU fan and provides a visual representation of the installation procedure.
34
Disassembly and reassembly
