Steps

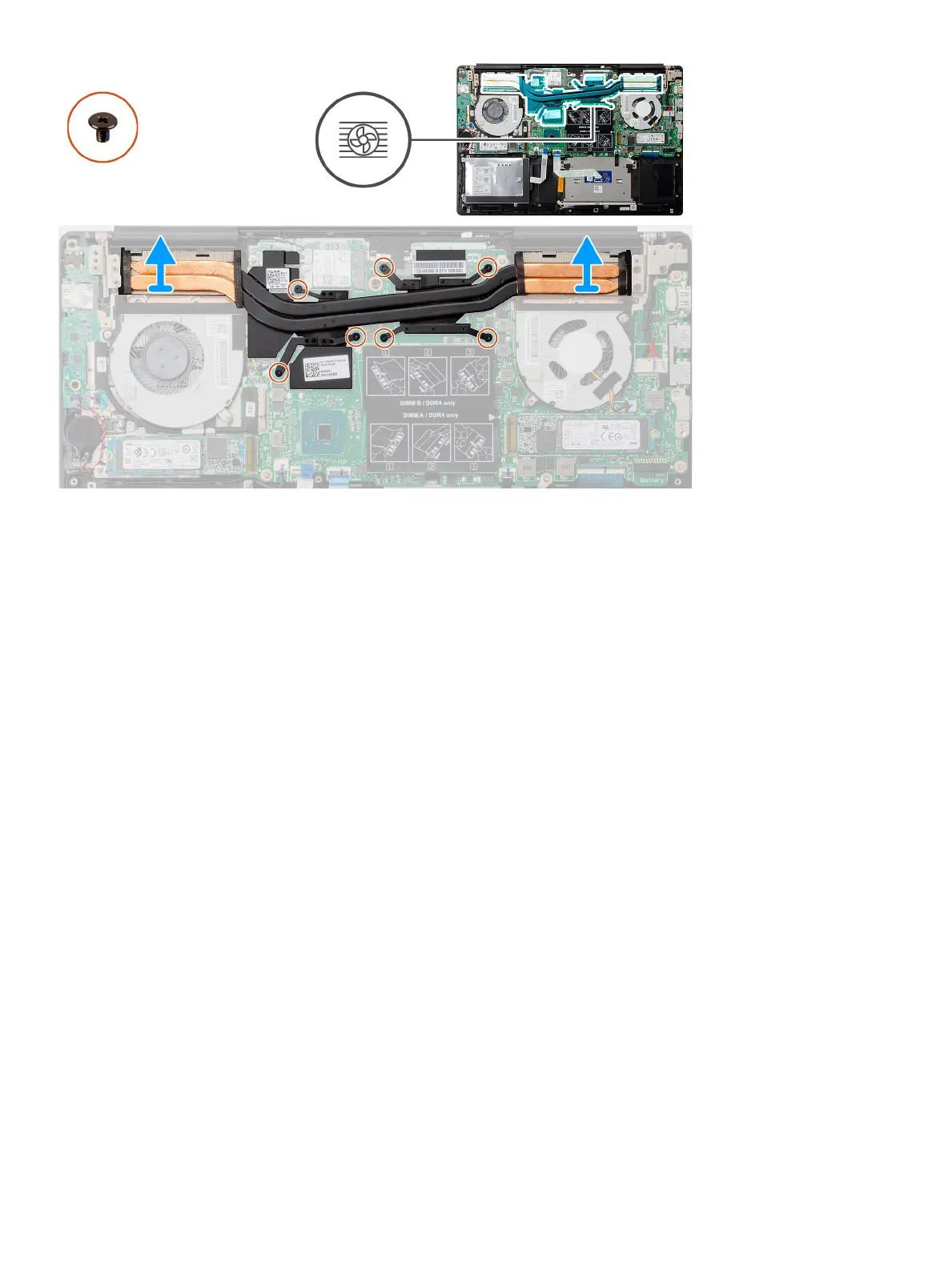

1 In sequential order (as indicated on the heat sink), loosen the seven captive screws that secure the heat sink to the system board.
2 Lift and remove the heat sink o the system board.
Installing the heat sink—discrete
Prerequisite
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The gure indicates the location of the heat sink and provides a visual representation of the installation procedure.
40
Disassembly and reassembly
