Dell Vostro 7590 - Removing the 3-Cell Battery

Steps
1 Place the battery on the palm-rest and keyboard assembly and align the screw holes on the battery with the screw holes on the palm-
rest and keyboard assembly.
2 Replace the seven screws (M2x4) to secure the battery to the system board and palm-rest and keyboard assembly.
3 Connect the battery cable to the system board.
Next steps
1 Install the base cover.
2 Follow the procedure in After working inside your computer.
Removing the 3-cell battery
NOTE
: The battery type in your computer varies depending on the conguration ordered.
Prerequisite
1 Follow the procedure in Before working inside your computer.
2 Remove the base cover.
About this task

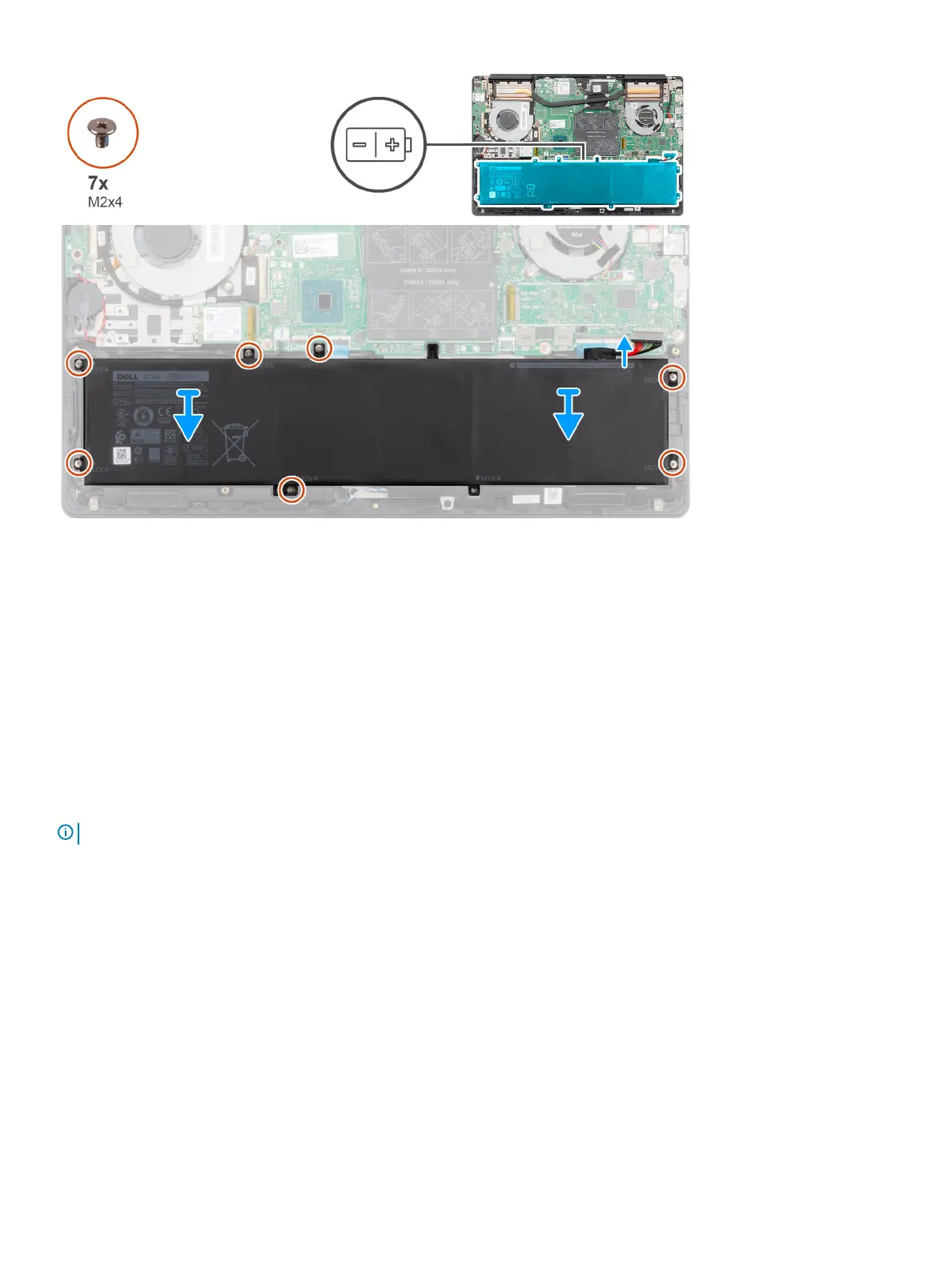

The gure indicates the location of the battery and provides a visual representation of the removal procedure.
16
Disassembly and reassembly
