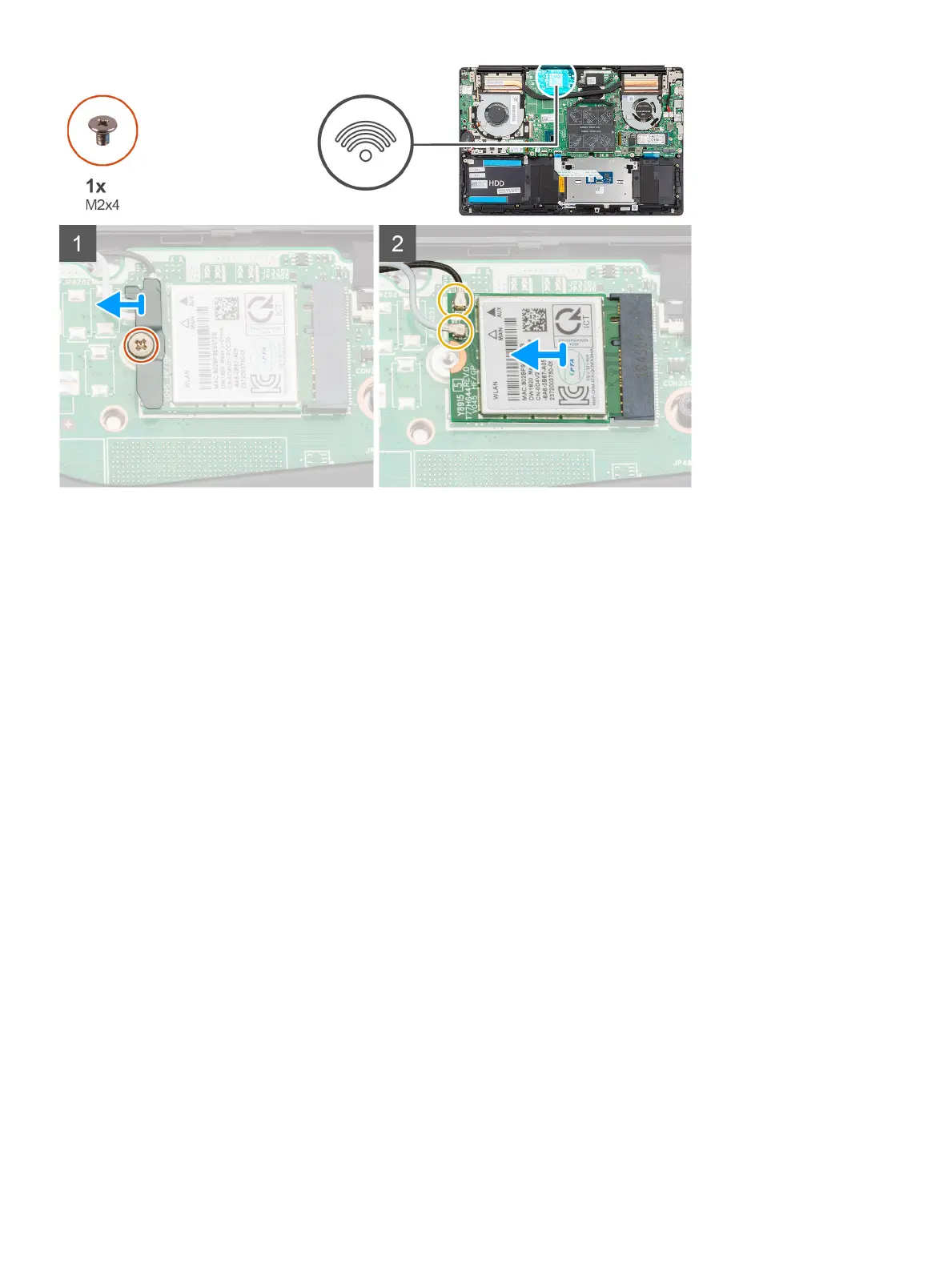

Steps
1 Remove the screw (M2x4) that secures the WLAN card bracket to the WLAN card.
2 Remove the WLAN card bracket from the WLAN card.
3 Disconnect the antenna cables from the WLAN card.
4 Slide and remove the WLAN card from the WLAN card slot.
Installing the WLAN card
Prerequisite
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The gure indicates the location of the WLAN card and provides a visual representation of the installation procedure.
Disassembly and reassembly
19
