Dell Vostro 7590 - Removing the Heat Sink-Discrete

Steps
1 Place the heat sink on the system board and align the screw holes on the heat sink with the screw holes on the system board.
2 In sequential order (as indicated on the heat sink), tighten the four captive screws that secure the heat sink to the system board.
Next step
1 Install the CPU fan.
2 Install the GPU fan.
3 Install the battery.
4 Install the base cover.
5 Follow the procedure in After working inside your computer.
Removing the heat sink—discrete
NOTE
: The heat sink type in your computer varies depending on the conguration ordered.
Prerequisites
1 Follow the procedure in Before working inside your computer.
2 Remove the base cover.
3 Remove the battery.
4 Remove the GPU fan.
5 Remove the CPU fan.
About this task

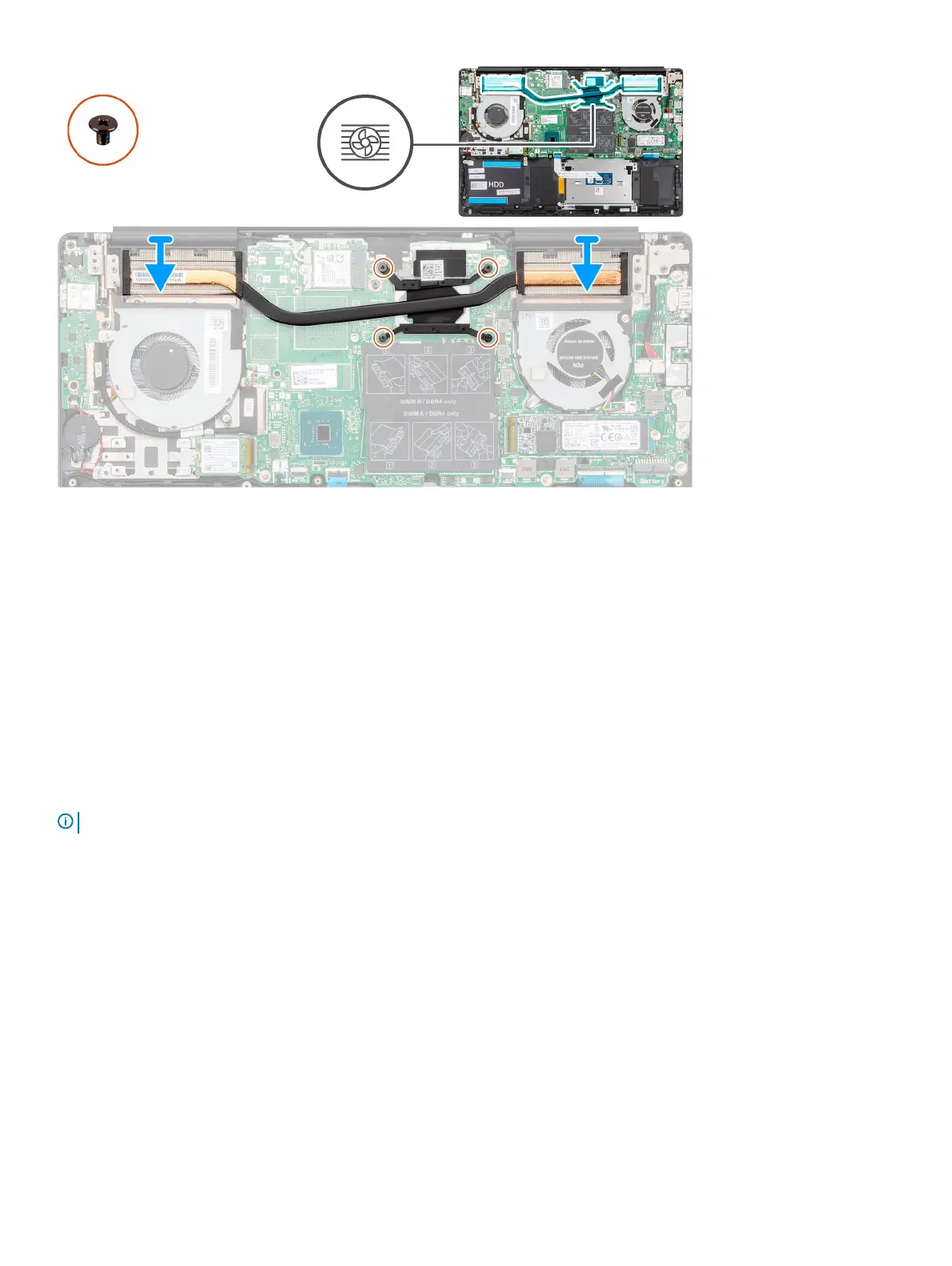

The gure indicates the location of the heat sink and provides a visual representation of the removal procedure.
Disassembly and reassembly
