Steps

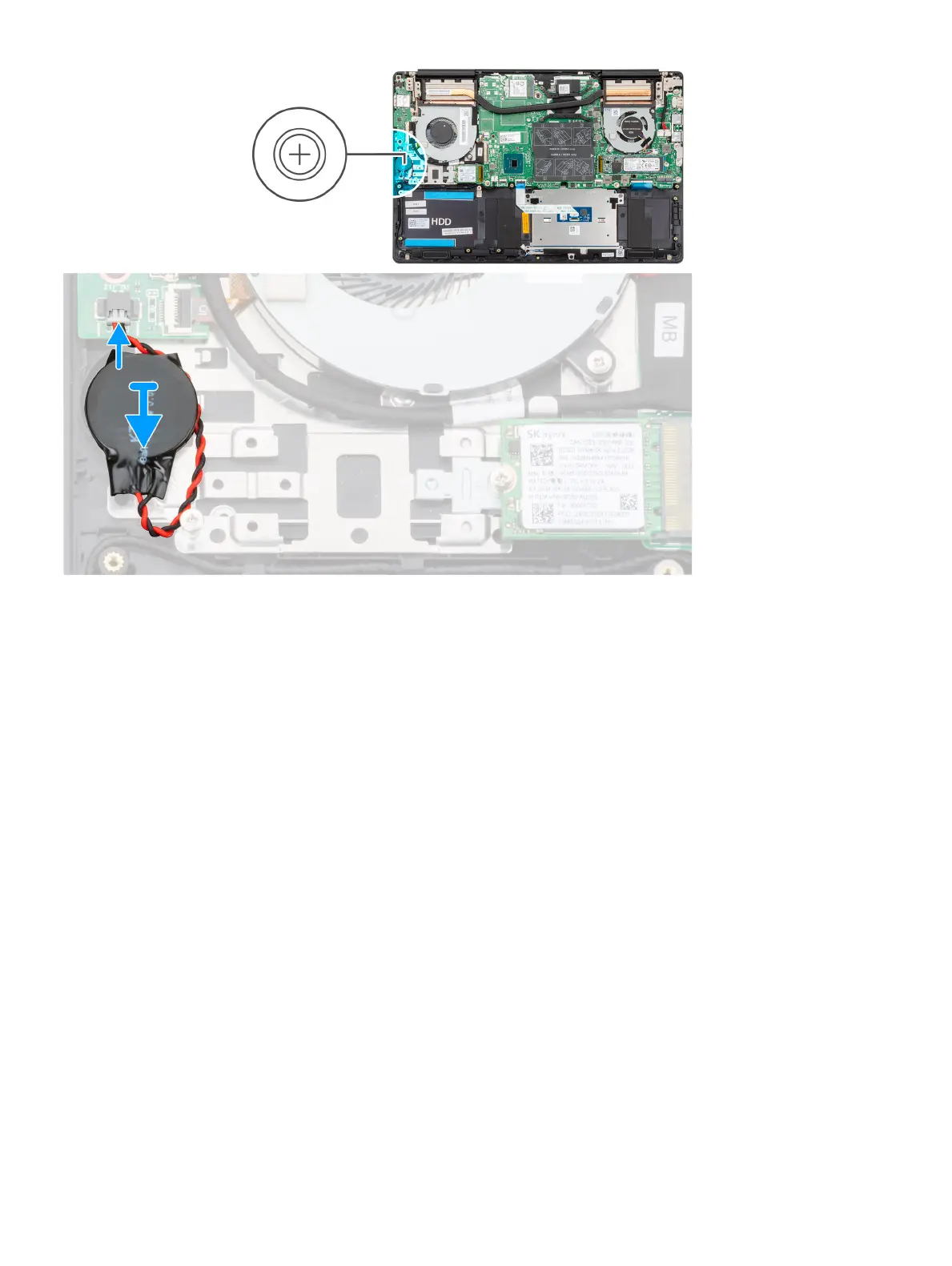

1 Adhere the coin-cell battery to the slot on the palm-rest and keyboard assembly.
2 Route the coin-cell battery cable as illustrated and connect it to the I/O board.
Next step
1 Install the battery.
2 Install the base cover.
3 Follow the procedure in After working inside your computer.
I/O board
Removing the I/O board
Prerequisites
1 Follow the procedure in Before working inside your computer.
2 Remove the base cover.
3 Remove the battery.
4 Remove the GPU fan.
About this task
The gure indicates the location of the I/O board and provides a visual representation of the removal procedure.
Disassembly and reassembly
