Steps

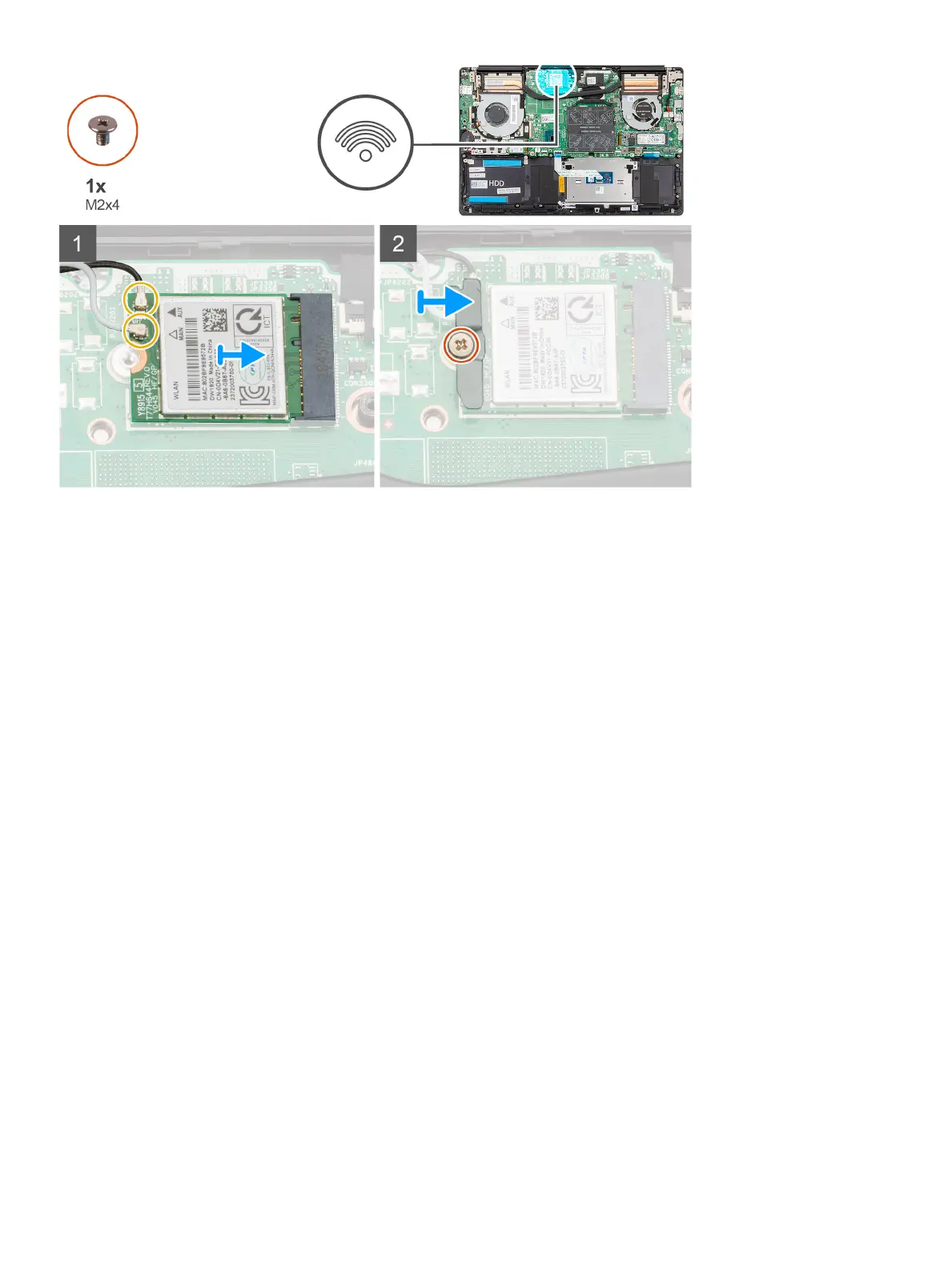

1 Align the notch on the WLAN card with the tab on the WLAN card slot and insert the WLAN card at an angle into the WLAN card slot.
2 Connect the antenna cables to the WLAN card.
3 Align and place the WLAN card bracket on the WLAN card.
4 Replace the screw (M2x4) to secure the WLAN card bracket to the WLAN card.
Next step
1 Install the battery.
2 Install the base cover.
3 Follow the procedure in After working inside your computer.
Memory modules
Removing the memory modules
Prerequisites
1 Follow the procedure in Before working inside your computer.
2 Remove the base cover.
3 Disconnect the battery cable.
About this task
The gure indicates the location of the memory module and provides a visual representation of the removal procedure.
20
Disassembly and reassembly
