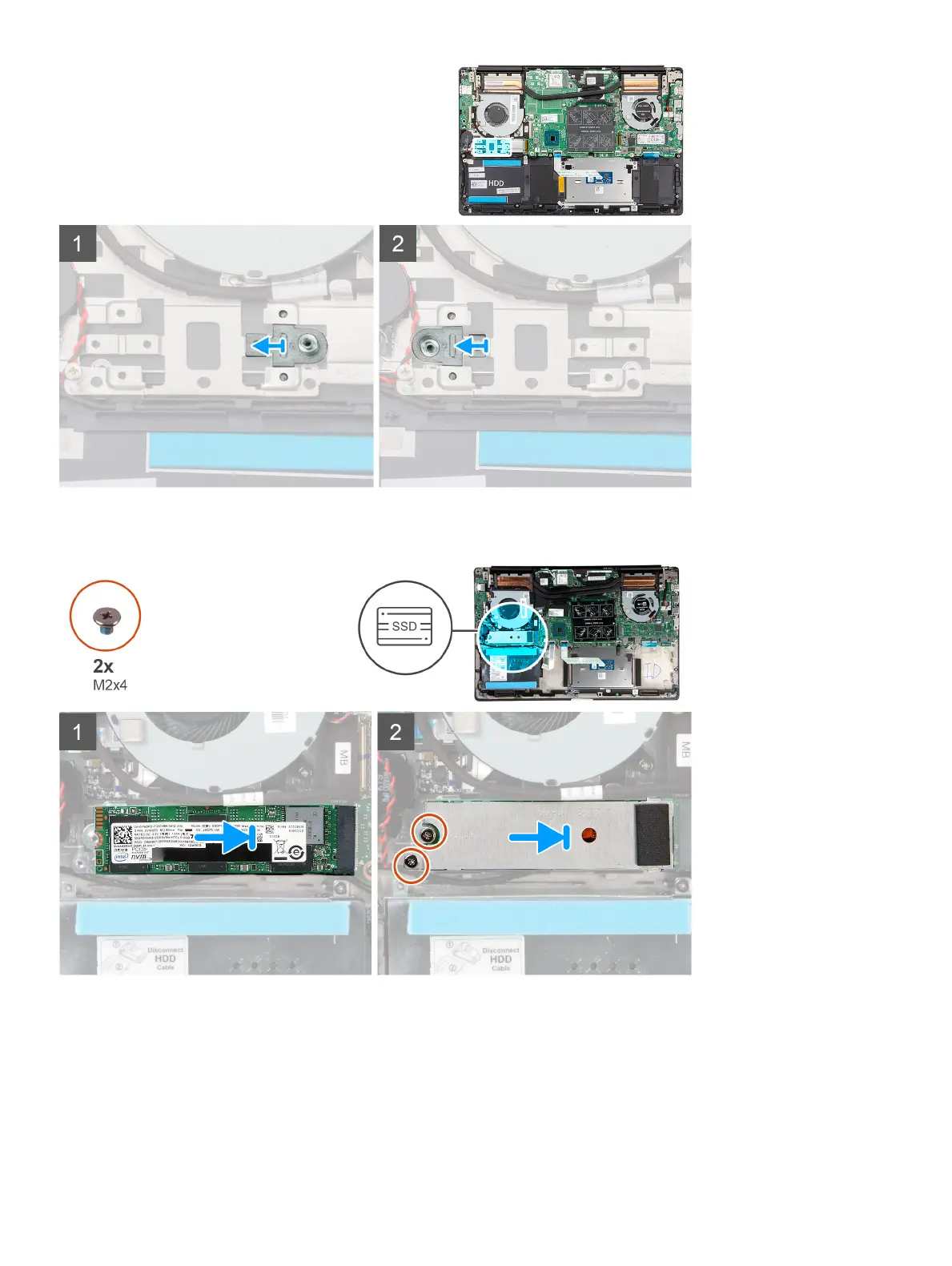

The gure indicates the location of the solid-state drive and provides a visual representation of the installation procedure:
Steps
1 If required, align the solid-state drive bracket to accommodate the M.2 2280 solid-state drive.
2 Align the notch on the solid-state drive module with the tab on the solid-state drive slot.
3 Slide the solid-state drive module rmly into the solid-state drive slot at an angle.
4 Secure the tab on the solid-state drive slot with the slot on the solid-state drive bracket.
5 Replace the two screws (M2x4) that secure the solid-state drive module shield to the palm-rest and keyboard assembly.
24
Disassembly and reassembly
