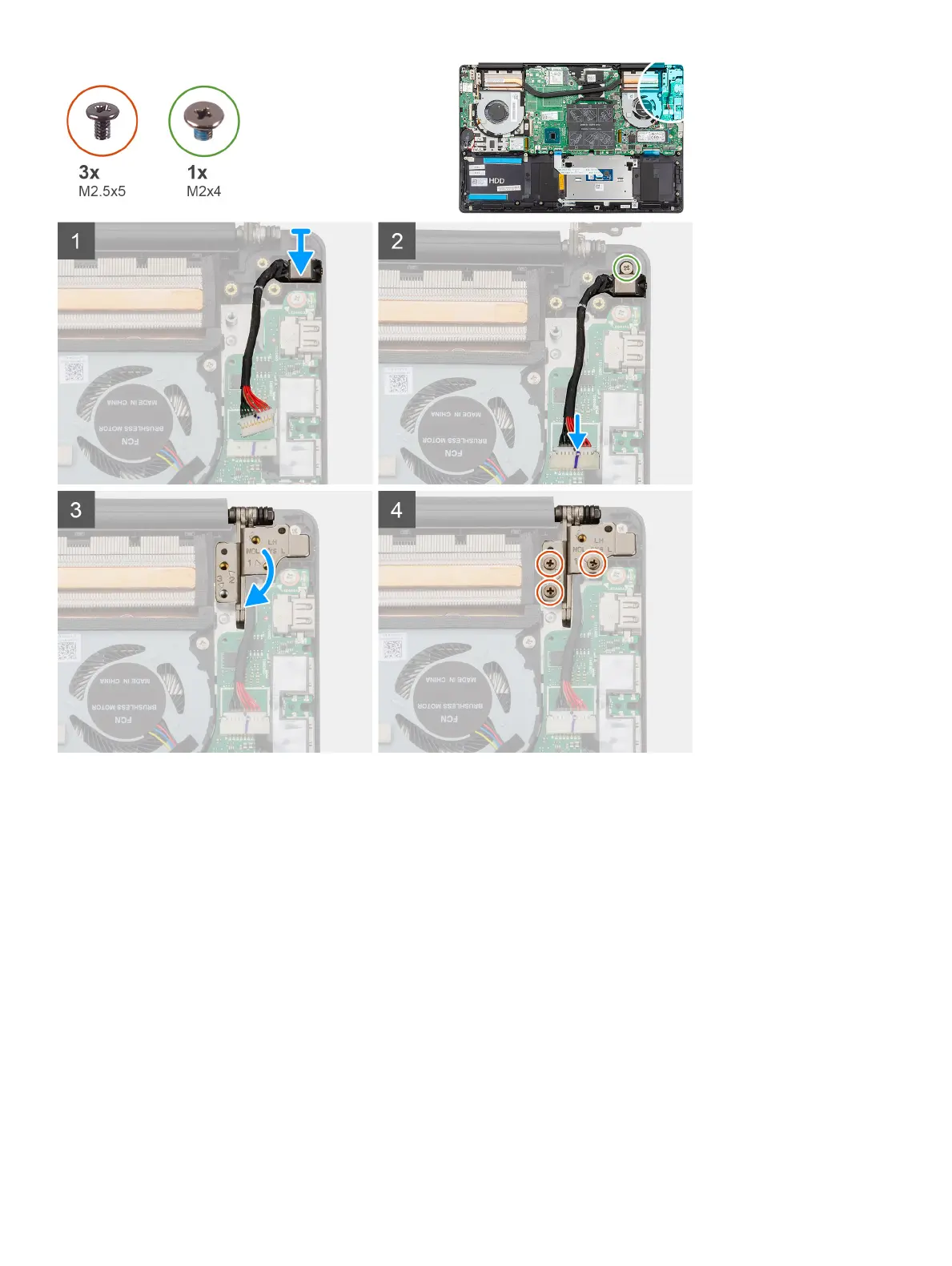

Steps
1 Connect the power-adapter port cable to the system board.
2 Replace the screw (M2x4) that secures the power-adapter port to the palm-rest and keyboard assembly.
3 Using the alignment posts, close the display hinges.
4 Replace the three screws (M2.5x5) that secure the left display hinge to the system board.
Next step
1 Install the battery.
2 Install the base cover.
3 Follow the procedure in After working inside your computer.
Disassembly and reassembly
49
