Chapter 6 Control Modes of Operation|ASDA-B Series
6-38 Revision January, 2009

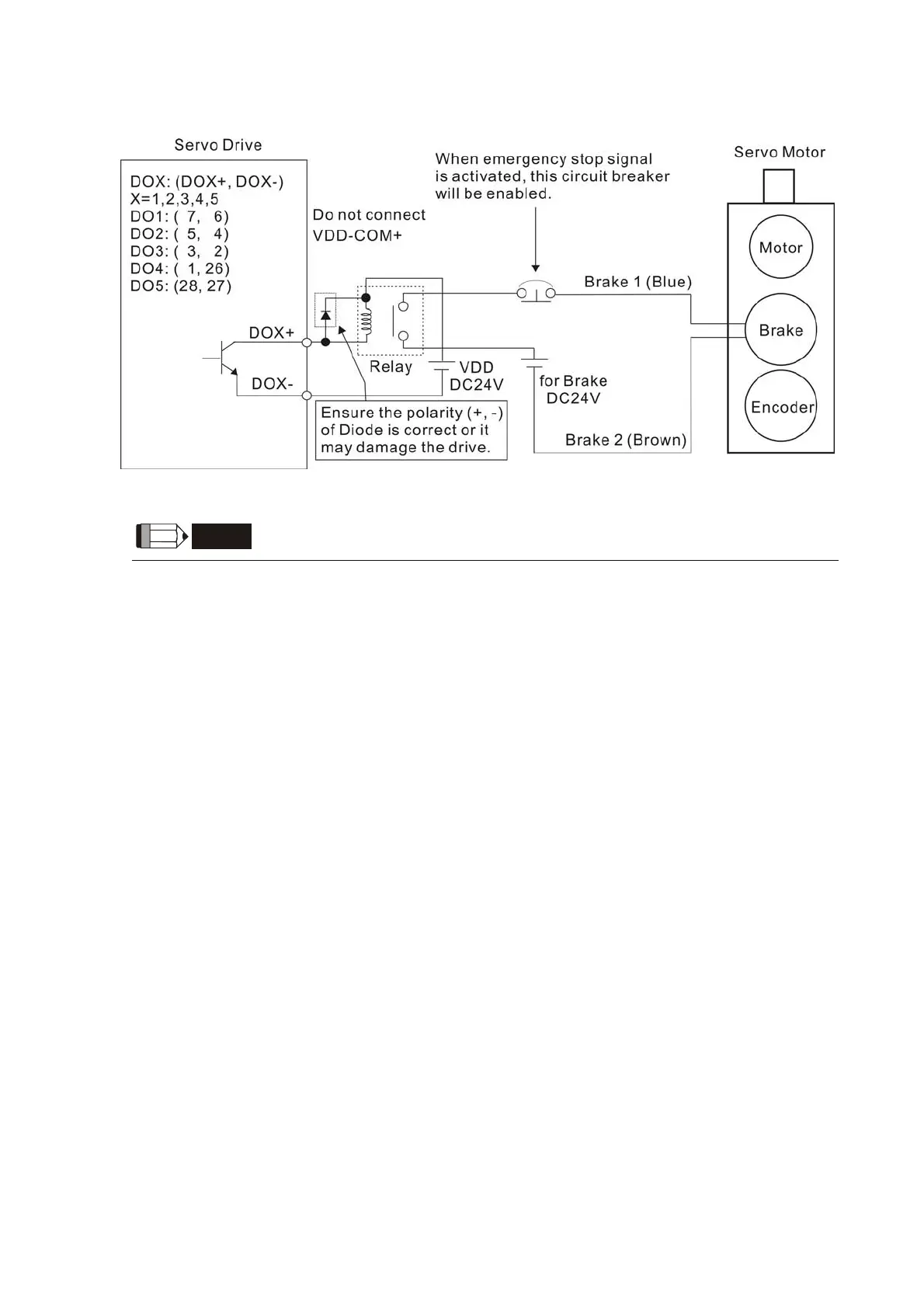

Electromagnetic Brake Wiring Diagram
NOTE
1) Please refer to Chapter 3 Connections and Wiring for more wiring information.
2) Please note that the coil of brake has no polarity.
3) The power supply for brake is DC24V. Never use it for VDD, the +24V source voltage.
