Delta Electronics ASDA-B Series User Manual

Chapter 3 Connections and Wiring|ASDA-B Series
Revision January 2009 3-23

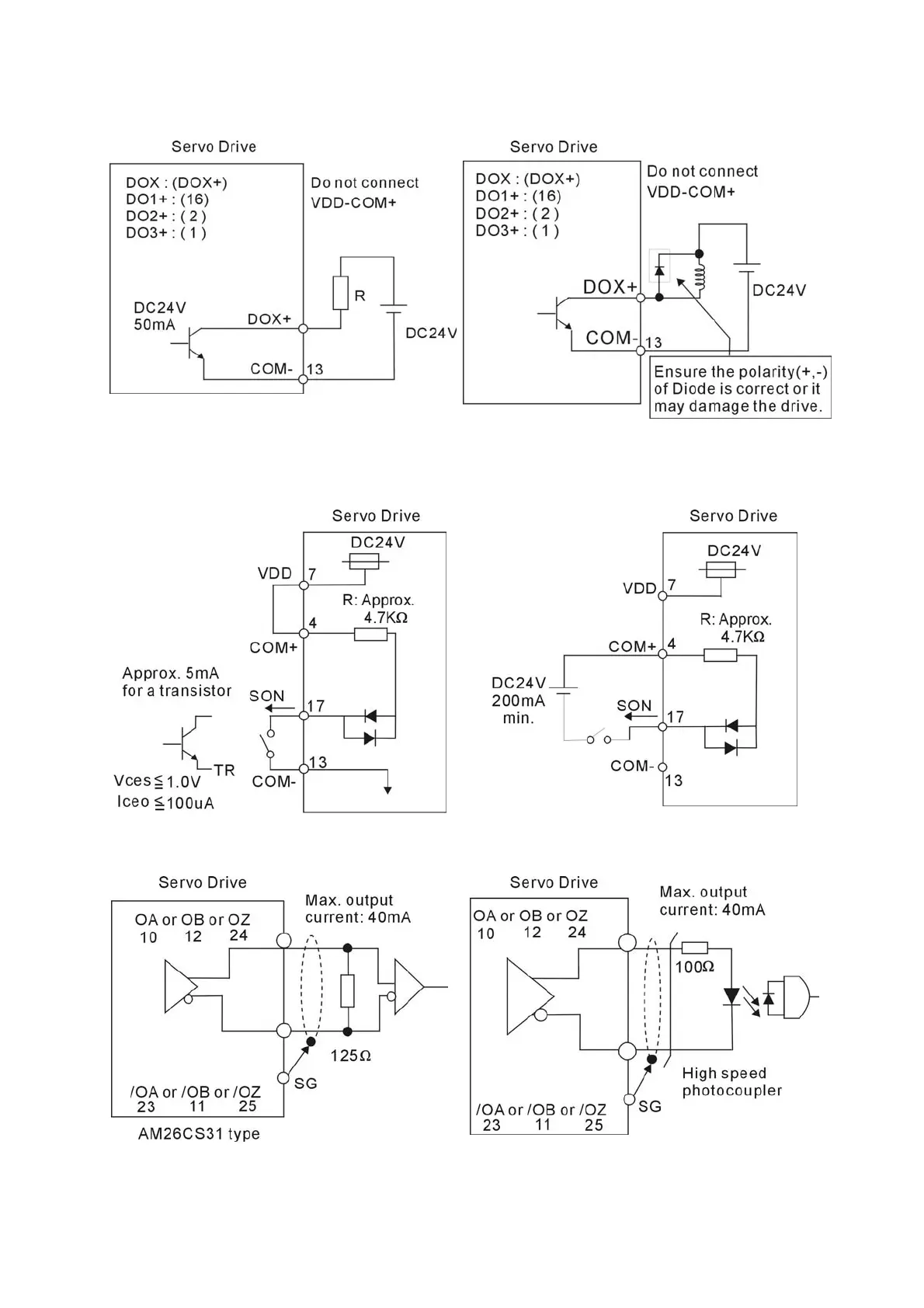

C6: Wiring of DO signal, for the use of external
power supply, general load
C7: Wiring of DO signal, for the use of external
power supply, inductive load
Use a relay or open-collector transistor to input signal.
C8: Wiring of DI signal, for the use of internal
power supply
C9: Wiring of DI signal, for the use of internal
power supply
C10: Encoder output signal (Line driver) C11: Encoder output signal (Photocoupler)
