AH500 Programming Manual
3-8

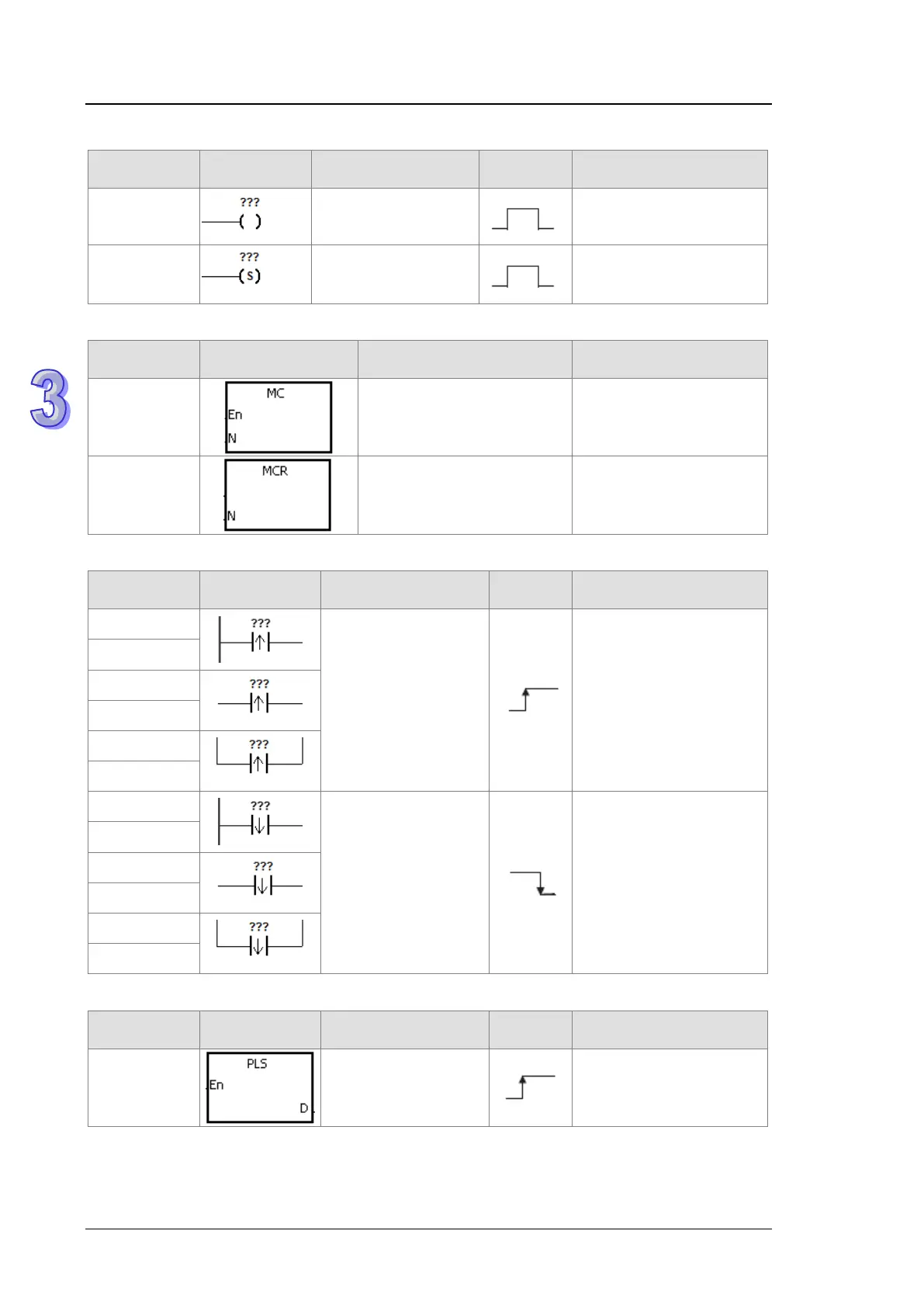

 Output instructions
Instruction
code
Symbol Function
Execution
condition
Operand
OUT Driving the coil
DY, X, Y, M, S, T, C, HC,
D, L, SM, and PR
SET Keeping the device on
DY, X, Y, M, S, T, C, HC,
D, L, SM, and PR
 Master control instructions
Instruction
code
Symbol Function Operand
MC Setting the master control N
MCR Resetting the master control N
 Rising-edge/Falling-edge detection contact instructions
Instruction
code
Symbol Function
Execution
condition
Operand
LDP
Starting the rising-ed
ge
detection/Connecting
the rising-edge
detection in
series/Connecting the
rising-
edge detection in
parallel
DX, X, Y, M, S, T, C, HC,
D, L, SM, and PR
PED
ANDP
APED
ORP
OPED
LDF
Starting the
falling-edge
detection/Connecting
the falling-edge
detection in
series/Connecting the
falling-edge detection
in parallel
DX, X, Y, M, S, T, C, HC,
D, W, L, SM, and PR
NED
ANDF
ANED
ORF
ONED
 Rising-edge/Falling-edge output instructions
Instruction
code
Symbol Function
Execution
condition
Operand
PLS Rising-edge output
DY, X, Y, M, S, T, C, HC,
D, L, SM, and PR
