Chapter 6 Applied Instructions
6-527

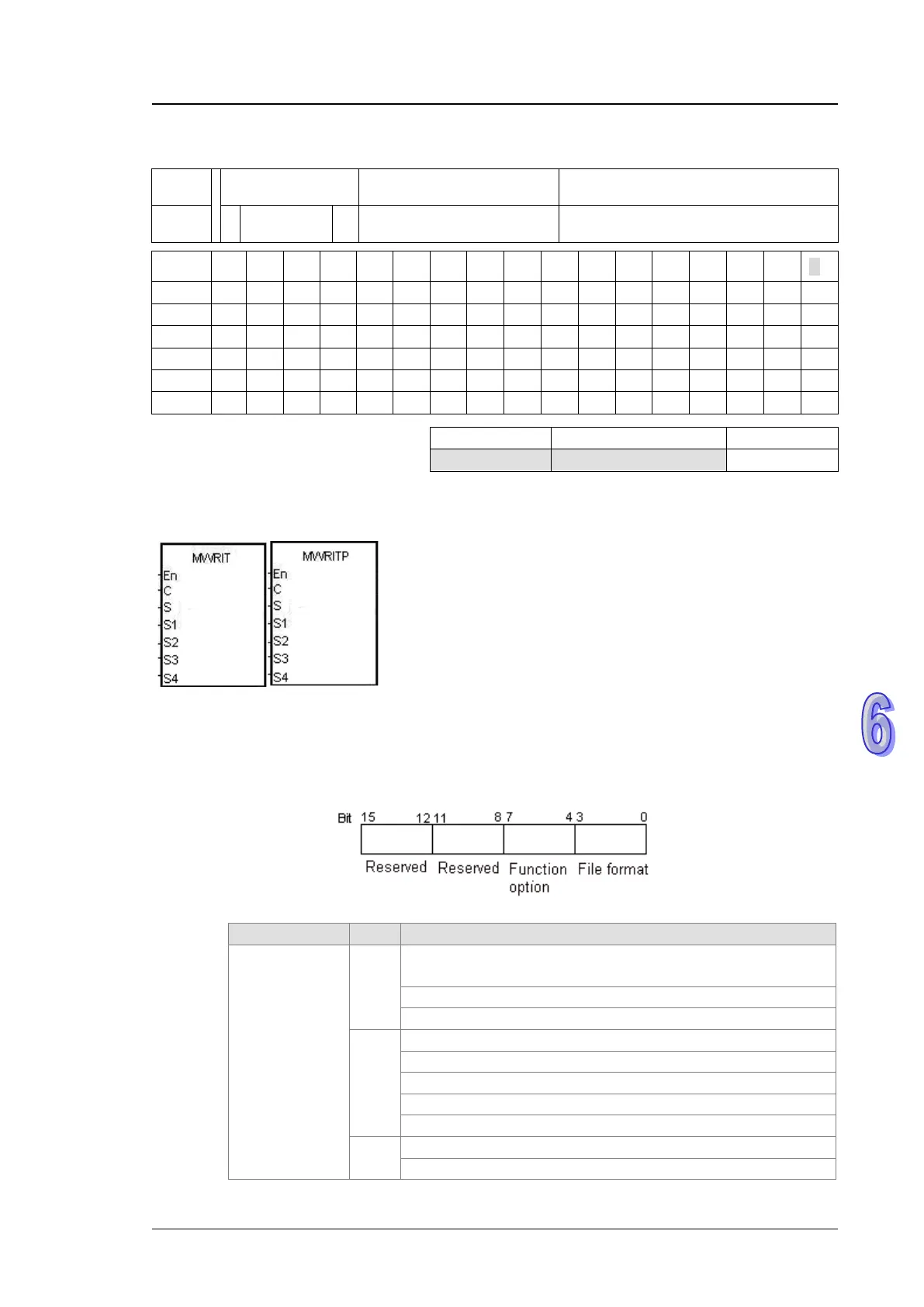

6.23.2 Explanation of Memory Card Instructions
API
Instruction code Operand
Function
2300 MWRIT P
C, S, S
1
, S
2
, S3, S4
Writing the data from the PLC into the
memory card
Device
X Y M S T C HC D L SM SR E PR K 16#
“$” DF
Pulse instruction 16-bit instruction (13 steps)
32-bit instruction
AH500 AH500 -
Symbol:
C
：
Control parameter Word
S
：
Data source Word
S
1
：
Data length Double word
S
2
：
Line advance Word
S
3
：
File name Word
S
4
：
Data address in the file Double word
Explanation:
1. The description of the operands:
C: The control parameter
File format
0
Default value
The file name extension is .dmd.
The unit of the value is the word.
1
The values are separated by a comma.
The unit of the value is the word.
The file name extension is .cvs.
The ASCII codes are adopted.
The value which is stored is a hexadecimal value.
2
The values are separated by a comma.
The unit of the value is the double word.
