AH500 Programming Manual
6-268
API Instruction code Operand Function
1204 SEGD P
S, D
Seven-segment decoding
Device
X Y M S T C HC D L SM SR E PR K 16# “$” DF
S
          
D
        
Pulse instruction 16-bit instruction (5 steps) 32-bit instruction
AH500
AH500
-

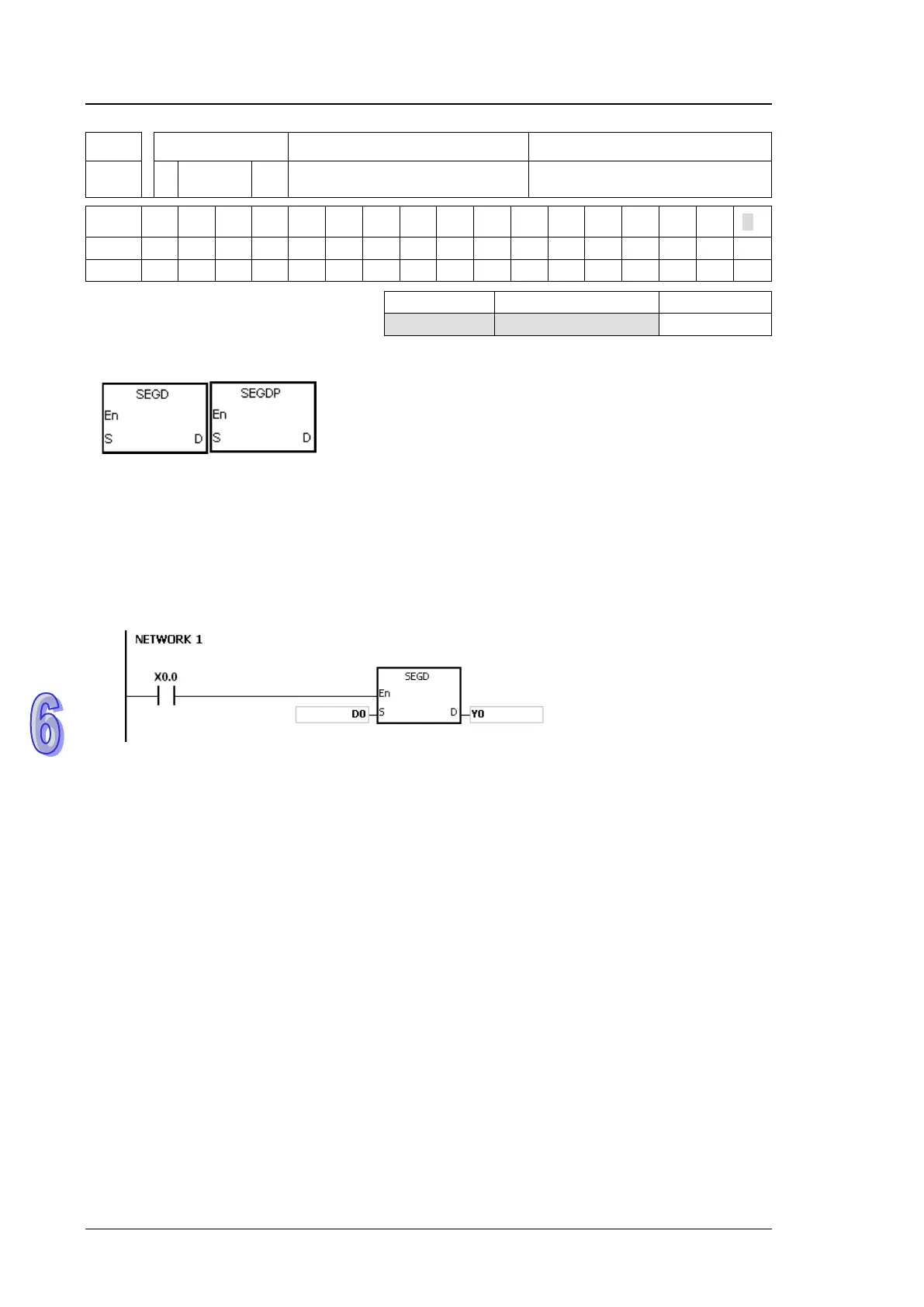

Symbol:
S
：
Source device Word
D
：
Device in which the seven-segment data is
stored
Word
Explanation:
The values of the lower 4 bits (b0~b3) in the source device specified by S are decoded as the
seven-segment data stored in D.
Example:
When X0.0 is ON, the values of b0~b3 in D0 are decoded as the seven-segment data stored in
Y0.0~Y0.15. If the data in the source device exceeds four bits, the values of the lower 4 bits are
decoded.
The relation between the seven-segment data and the bit pattern of source data is presented in the
following table.
