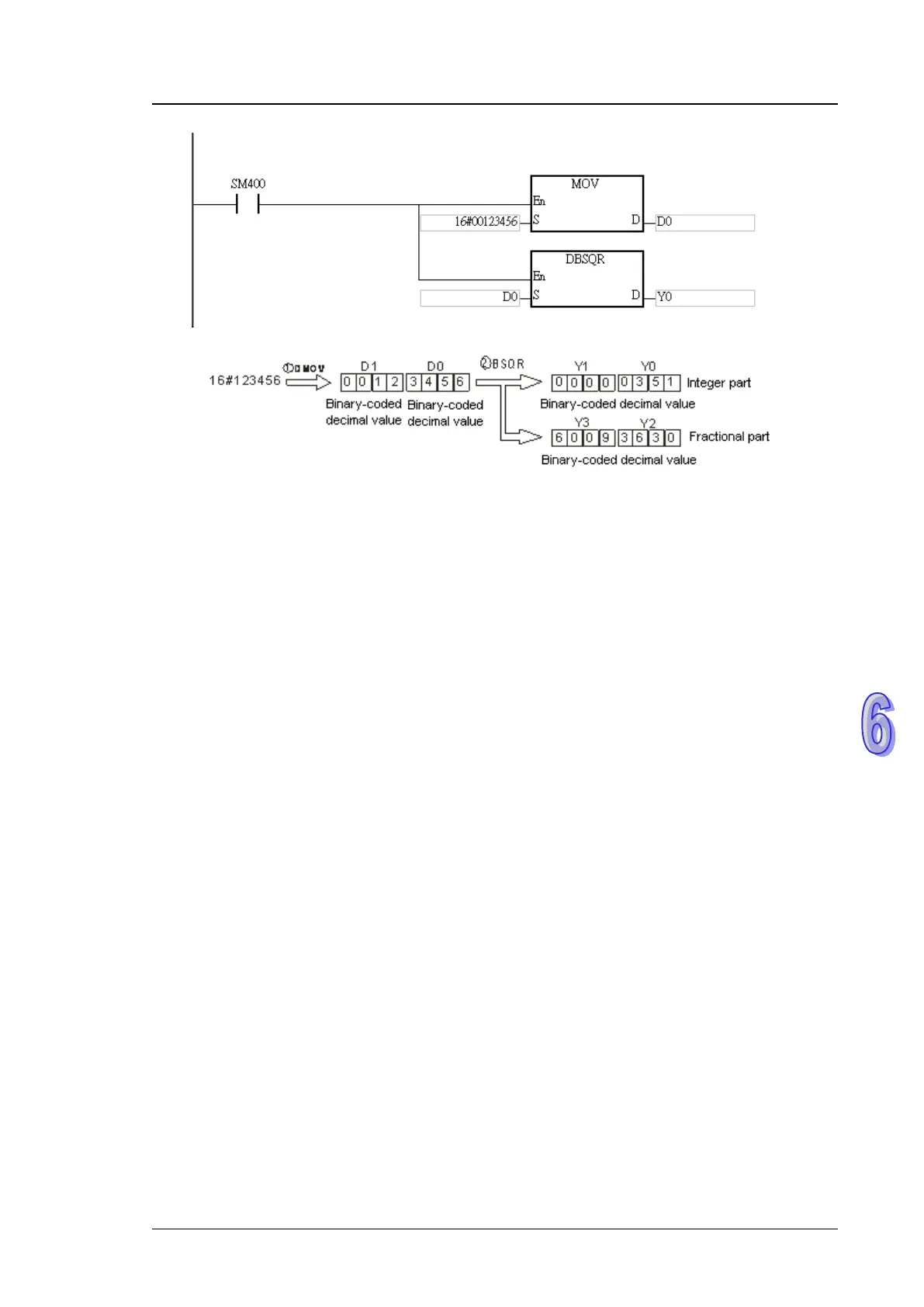

Chapter 6 Applied Instructions
6-349
Additional remark:
1. If the value in S is not a binary-coded decimal value (The binary-coded decimal value is
represented by the hexadecimal number, but one of digits is not within the range between 0
and 9.), the operation error occurs, SM0 is ON, and the error code in SR0 is 16#200D.
2. If the operand D used during the execution of the 16-bit instruction is declared in ISPSoft, the
data type will be ARRAY [2] of WORD/INT.
3. If the operand D used during the execution of the 32-bit instruction is declared in ISPSoft, the
data type will be ARRAY [2] of DWORD/DINT.
