4. If S used in the 16-bit instruction is a string, the number of characters contained in the string
should be within the range between 1 and 4. If S used in the 32-bit instruction is a string, the
number of characters contained in the string should be within the range between 1 and 8.

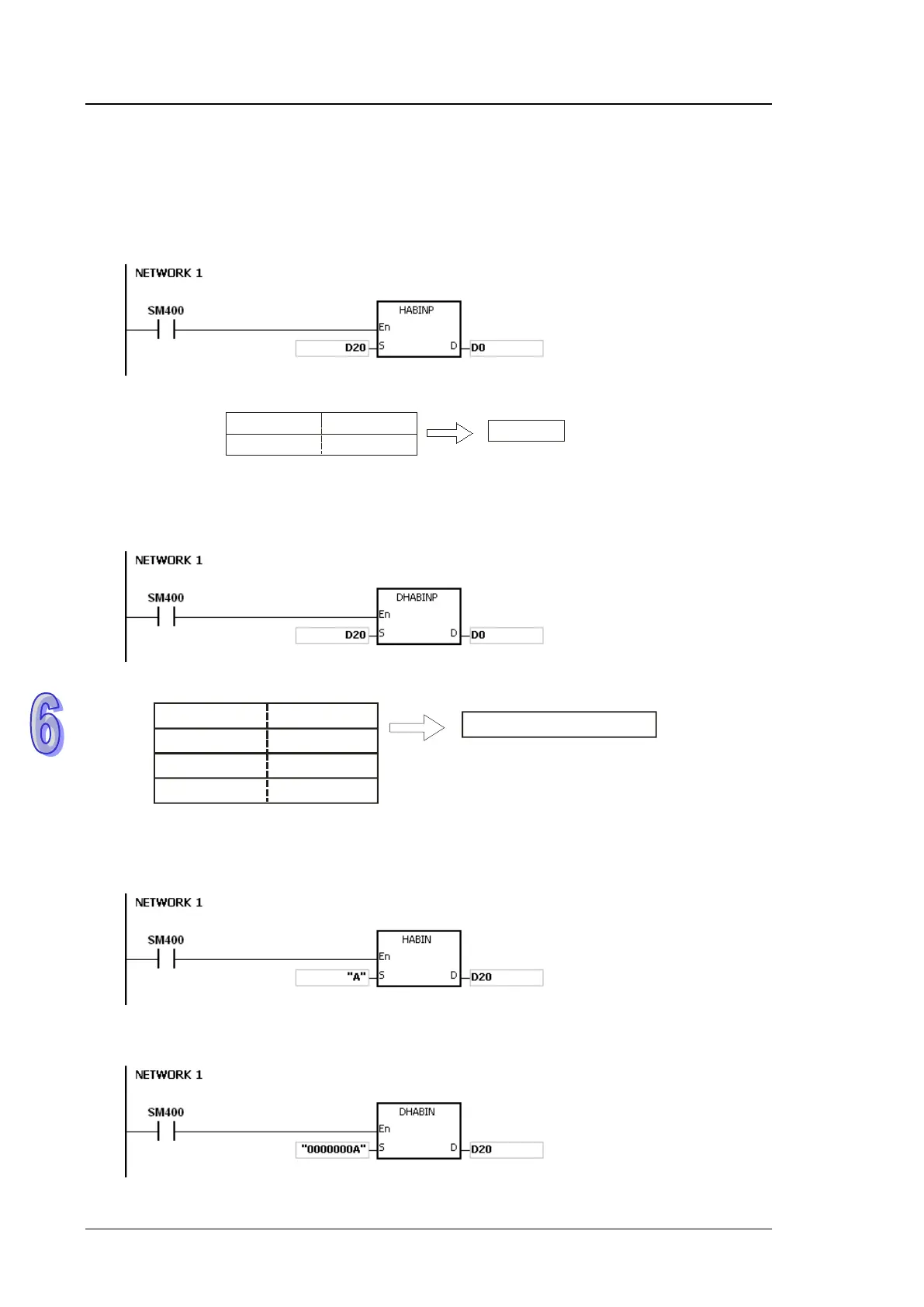

Example 1:
Suppose the values in D20 and D21 are 16#3641 and 16#4633 respectively. When the PLC runs,
the value in D0 is -22977.
b15
b0
b7 b8
16#36(6)
41(A)16#
46(F)16# 33(3)16#
Conversion result= A63F=-2297716#
D20
D21
D0
-22977
Example 2:
Suppose the values in D20, D21, D22, and D23 are 16#4634, 16#3244, 16#3738, and 16#3035
respectively. When the PLC runs, the value in (D1, D0) is 1339197264.
b15
b0
b7 b8
16#46(F) 16#34(4)
16#32(2) 16#44(D)
Conversion result =
#16 =13391972644FD28750
D20
D21
(D1,D0)
1339197264
16#37(7)
16#38(8)
16#30(0) 16#35(5)
D22
D24
Example 3:
Suppose S is the string “A”. Since the number of characters contained in the string is less than 4, the
string is regarded as “A000”. When the PLC runs, the value in D20 is -24576.
Example 4:
Suppose S is the string “0000000A”. When the PLC runs, the value in (D21, D20) is 10.
