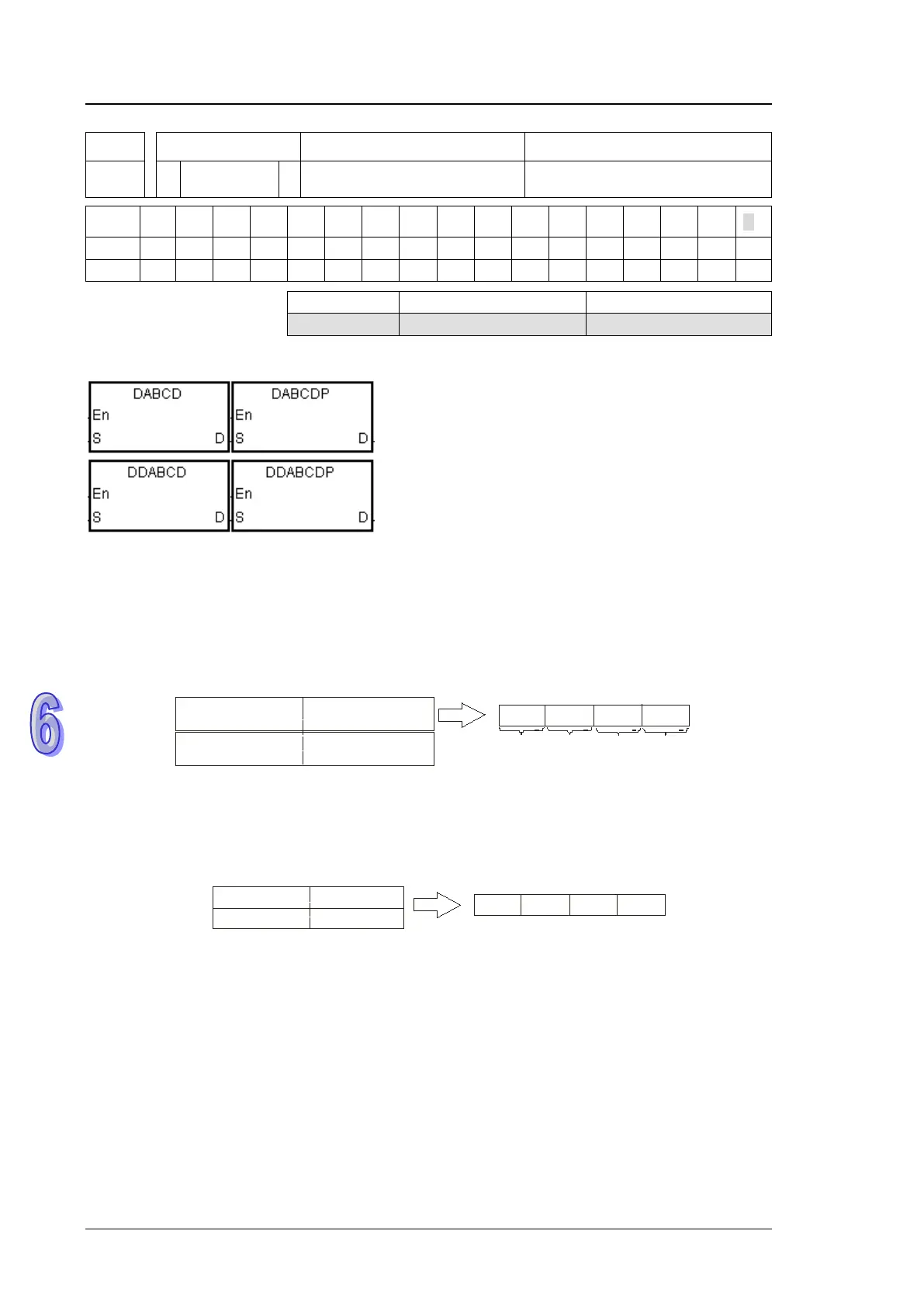

Delta AH500 - Page 622

AH500 Programming Manual
6-454
API Instruction code Operand
Function
2105 D DABCD P
S, D
Converting the ASCII code into the
binary-coded decimal number
Device
X Y M S T C HC D L SM SR E PR K 16# “$” DF
S
        
D
        
Pulse instruction 16-bit instruction (5-11 steps) 32-bit instruction (5-11 steps)
AH500
AH500
AH500
Symbol:
S
：
Source value Word/Double word
D
：
Device in which the
conversion result is stored
Word/Double word
Explanation:
1. The ASCII code in S is converted into the binary-coded decimal number, and the conversion
result is stored in D.
2. The operand S used in the 16-bit instruction occupies two word devices, and the ASCII code in
S should be within the range between 0000 and 9999. If S is a string, the string should be
within the range between “0” and “9999”.
b15
b0
b15
b0
b7
b8
S
S+1
b3
b4 b7
b8
b11
b12
D
ASCII code in
the units place
ASCII code in
the tens place
ASCII code in
the hundreds place
ASCII code in
the thousands place
Units place
Tens place
Hundreds place
Thousands place
If the ASCII code in S~S+1 is 8765, the conversion result is as follows.
b15
b0
b15
b0
b7 b8
S
S+1
b3
b4 b7
b8
b11
b12
16#37(7) 16#38(8)
16#35(5) 16#36(6)
5 6 7
8
D
3. The operand S used in the 32-bit instruction occupies four word devices, and the ASCII code
in S should be within the range between 0000000 and 99999999. If S is a string, the string
should be within the range between “0” and “99999999”.
