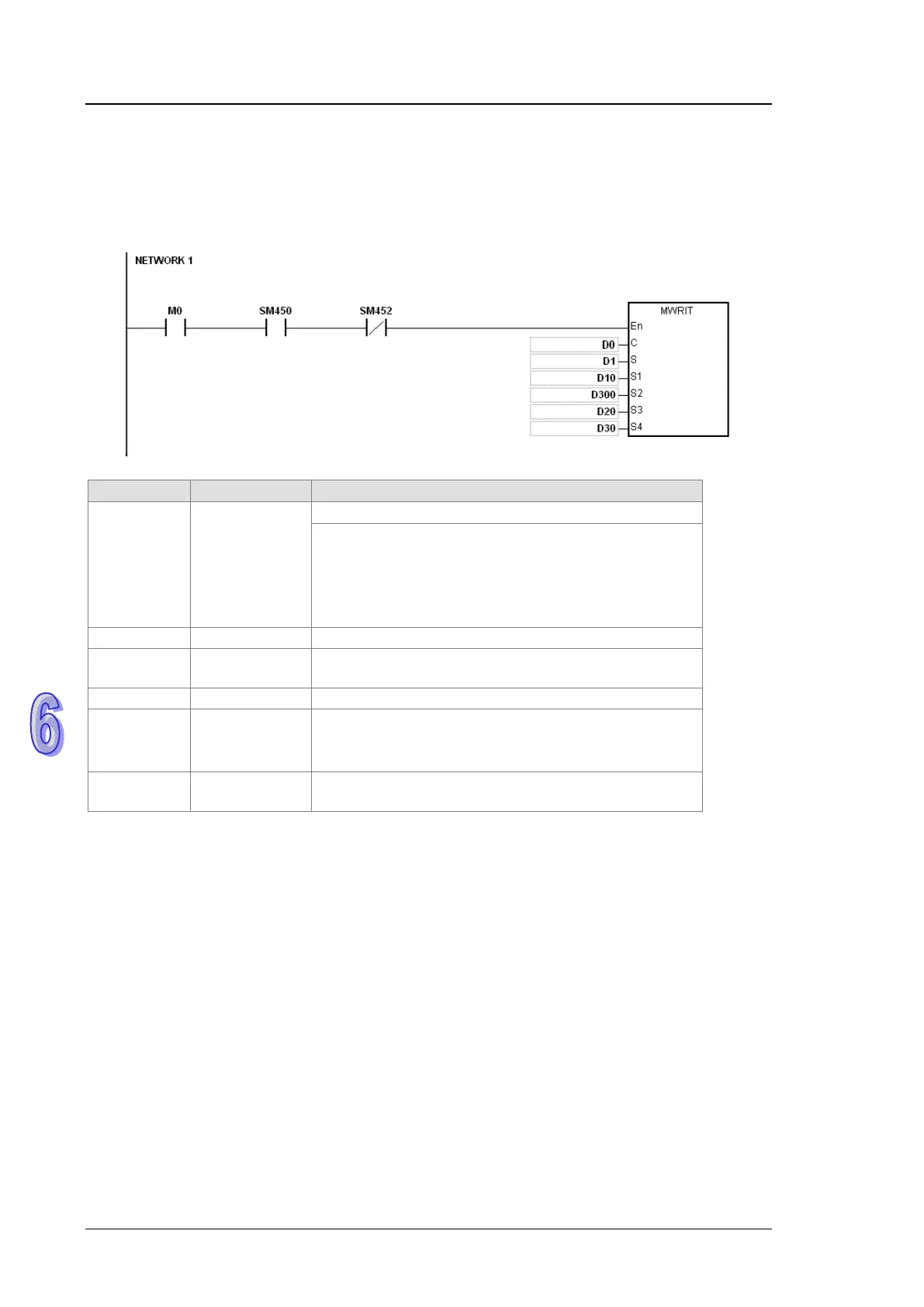

Example:
SM450 is ON when the memory card is inserted into the CPU module; SM452 is ON when MWRIT
is executed; SM452 is OFF when the execution of MWRIT is complete. MWRITP the pulse
instruction, cannot be used continuously. If executing this pulse instruction to write data into the
memory card continuously, it may exceed its written limitation and may lead to memory card broken.
Operand
Setting value
Description
D0 16#0011
The file into which the data is written
The file format:
The values are separated by a comma.
The unit of the value is the word.
The file name extension is .cvs.
The ASCII codes are adopted.
D1
-
The data which is written into the file
D10, D11 16#00000030
The size of the data which is written into the file is 48
words.
D300
16#000A
Ten values are written into every line.
D20
D20=16#6554
D21=16#7473
D22=16#0031
The file name is “Test1”.
D30、D31
16#00000000
The data which is written into the memory card replaces
the values in the file starting from the first value.
Additional remark:
1. If the value in C exceeds the range, the operation error occurs, the instruction is not executed,
SM0 is ON, and the error code in SR0 is 16#2003.
2. If the value in S
1
exceeds the range, the operation error occurs, the instruction is not executed,
SM0 is ON, and the error code in SR0 is 16#2003.
3. If the value in S
2
exceeds the range, the operation error occurs, the instruction is not executed,
SM0 is ON, and the error code in SR0 is 16#2003.
4. If the value in S
3
exceeds the range, the operation error occurs, the instruction is not executed,
SM0 is ON, and the error code in SR0 is 16#2003.
