Delta M50A-260 - Internal Heat Sinks

4 Product overview
Cooling system
24
Installation and Operation Manual M50A_260 RPI503M260000 Product version L and M EU V1.3 EN 2023-08-14
4.9.3 Internal heat sinks

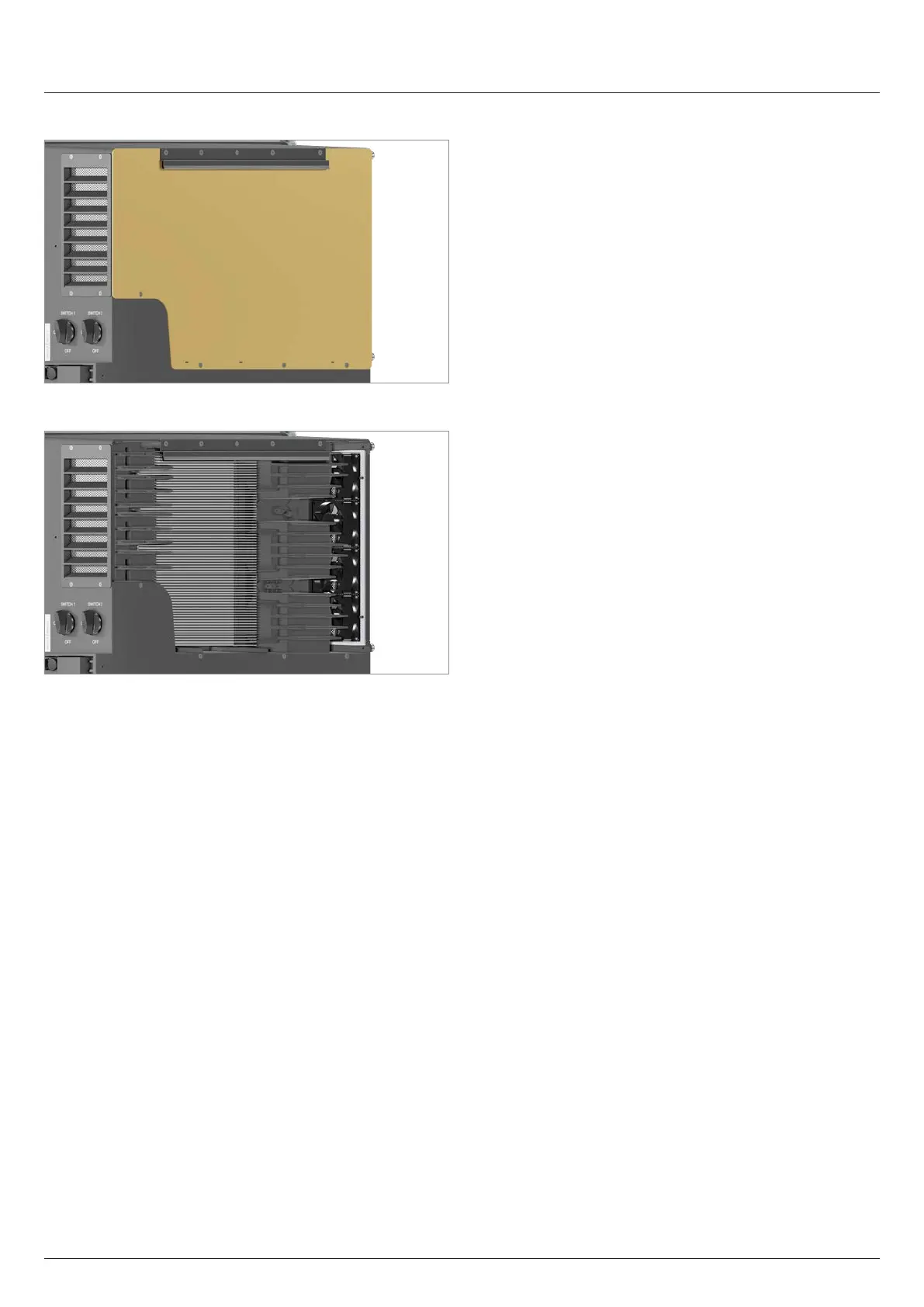

Fig. 4.21: Rear cover plate
Fig. 4.22: Internal heat sinks with rear cover plate removed
The rear cover plate can be removed to gain access to the inter-
nal heat sinks.
