Delta M50A-260 - Installation Clearances and Air Circulation

31
Installation and Operation Manual M50A_260 RPI503M260000 Product version L and M EU V1.3 EN 2023-08-14
5 Planning the installation
Installation location
5.1.6 Installation clearances and air circulation
> 300 > 300
> 600
> 200 > 200
> 60
and air circulation

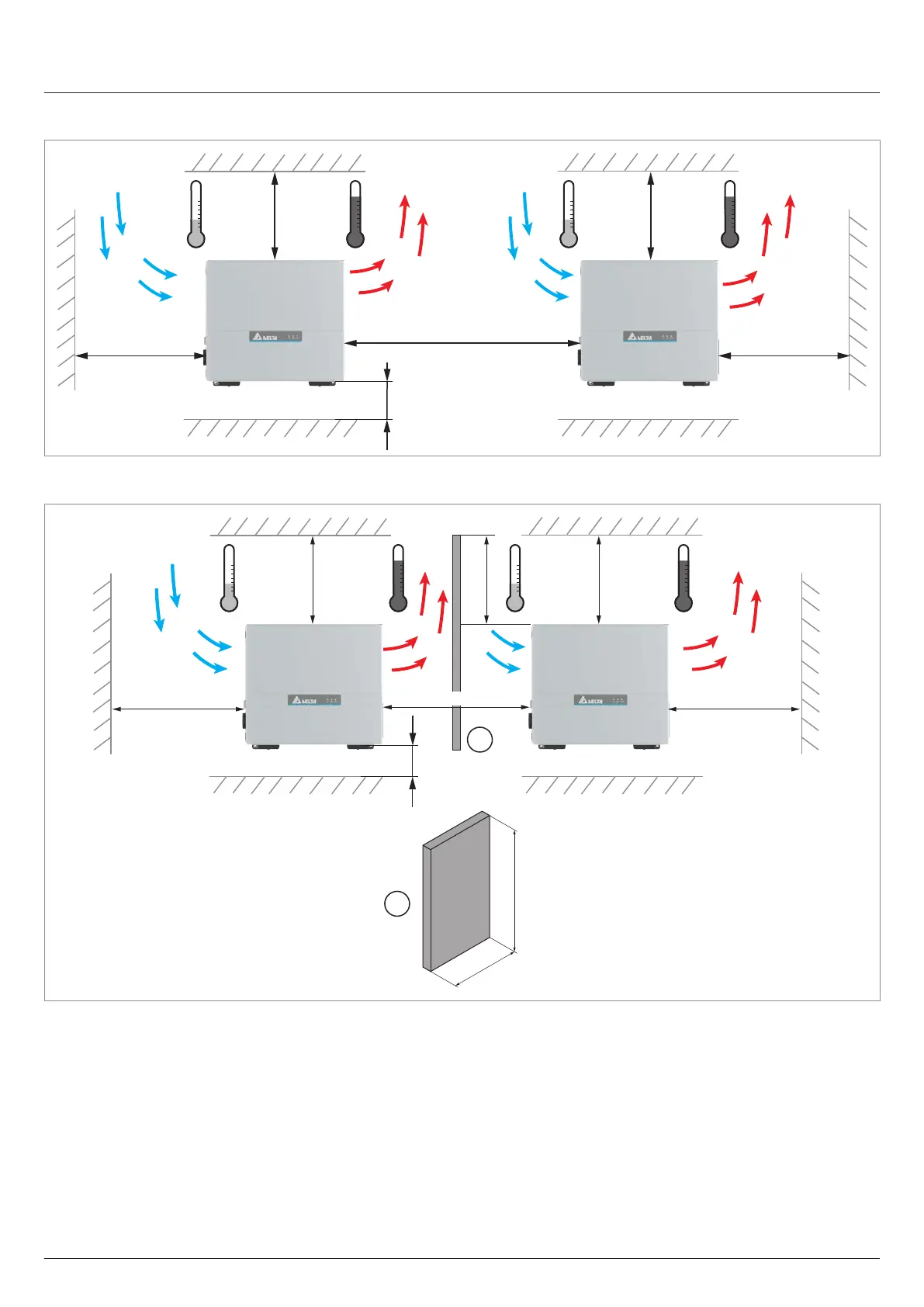

Fig. 5.4: Mounting distances and air circulation, variant 1 (in mm)
> 300
> 300
> 200 > 200
>60
> 200
> 300 ... 600
> 830
> 380
A
A
and air circulation
Fig. 5.5: Mounting distances and air circulation, variant 2 (in mm)
