7 Installation
Connecting the solar modules (DC)
80
Installation and Operation Manual M50A_260 RPI503M260000 Product version L and M EU V1.3 EN 2023-08-14

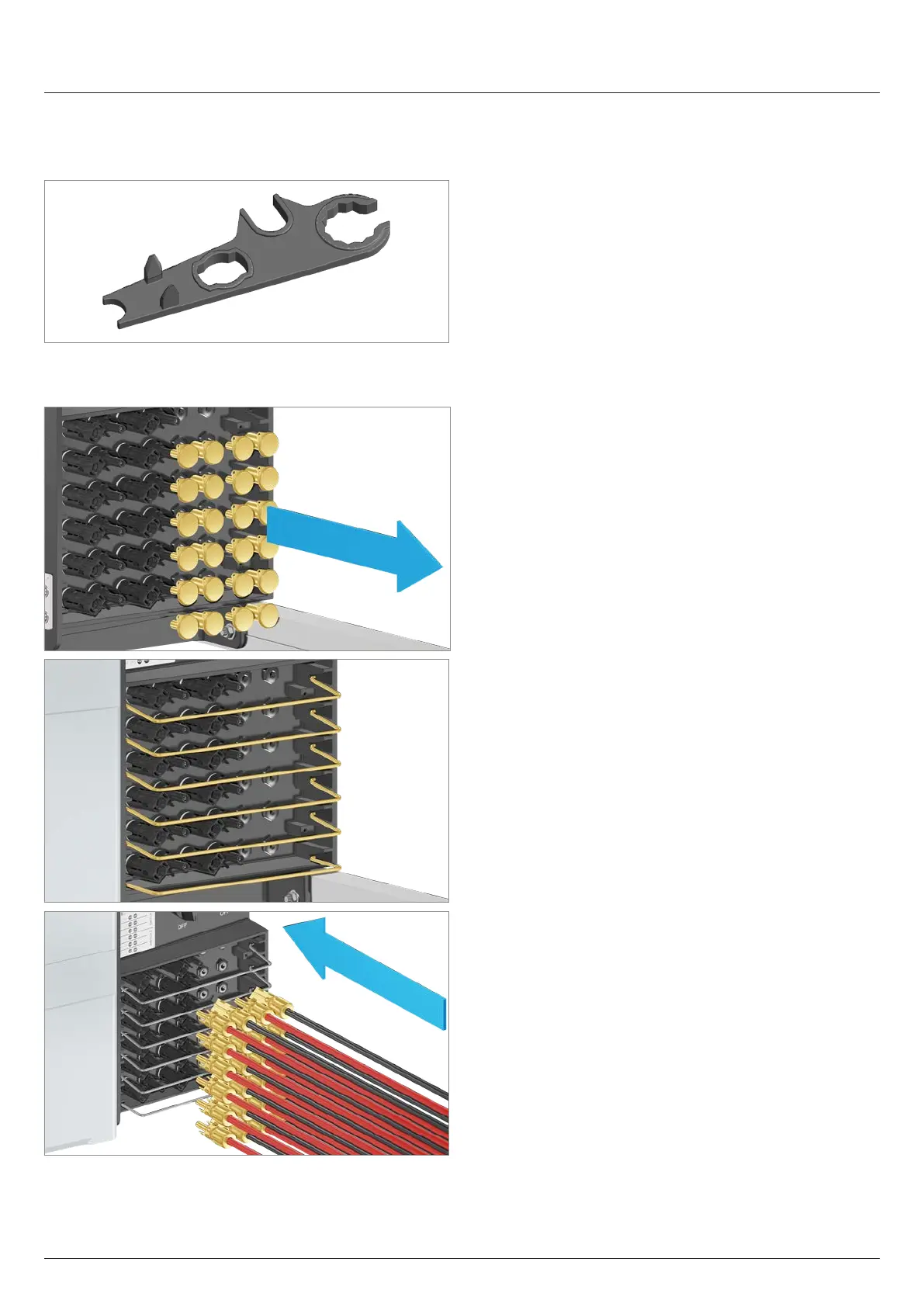

7.9 Connecting the solar modules (DC)
Special tools required
Fig. 7.16: Mounting tools for DC connectors (included in deliv-
ery)
1. Pull out the cover caps of the DC connections.
2. Insert the metal brackets to support the DC cables.
3. Plug in the DC cables.
