Planning the device communication and plant monitoring
Installation and Operation Manual M50A_260 RPI503M260000 Product version L and M EU V1.3 EN 2023-08-14
5.7 Planning the device communication
and plant monitoring
Related topics
“6. Planning the Commissioning”, page 51
“7.7 Connecting the communication card”, page 63
5.7.1 Introduction
The inverter o󰀨ers the following options for communication with
other devices (e.g. PC, smartphone, data logger):
● RS485 (communication card with RS485 connections,
digital inputs, dry contacts, external power-o󰀨 and 12 V
DC
power supply)
● Sub-1G antenna (included in scope of delivery)
● Wi-Fi module (optional accessory)
5.7.2 Components of the communication card
The connections for RS485, the digital inputs, the
dry contacts and the external power-o󰀨 (EPO) are
all on the communication card. This means that
the installation work can be combined.
5 4
1
3
2
6

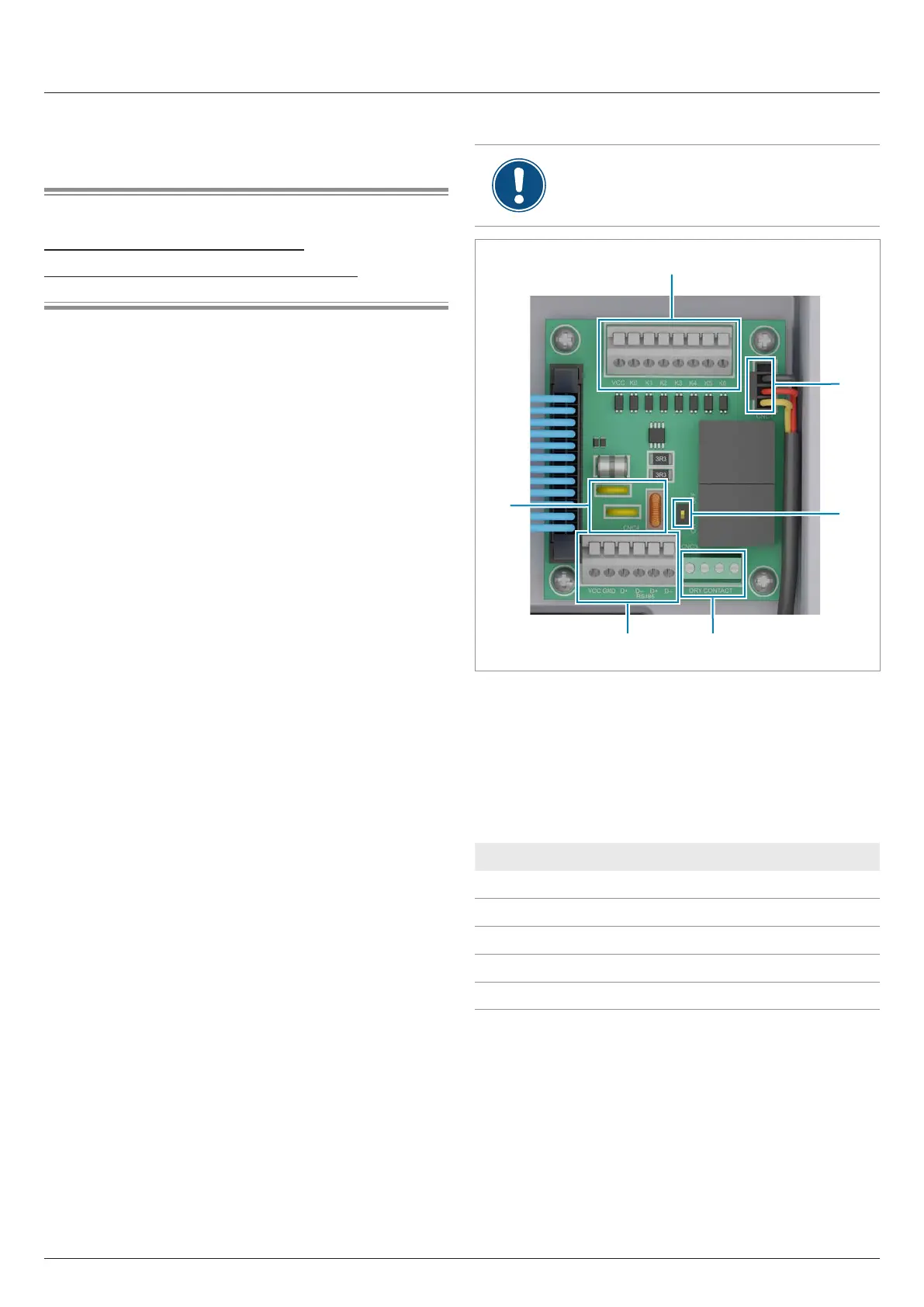

Fig. 5.27: Components of the communication card
1 Digital inputs and external power-o󰀨 (terminal block)
2 Power supply for internal fan 1
3 DIP switch for the RS485 termination resistor
4 2 x dry contacts (terminal block)
5 RS485 (terminal block)
6 Protection against electromagnetic interference (EMI)
Connection Connection type
2x RS485 (DATA+ and DATA–) Terminal block
1x VCC (12 V, 0.5 A) Terminal block
6x digital inputs Terminal block
2x dry contacts Terminal block
1x external power-o󰀨 (EPO) Terminal block
Table 5.4.: Connections on the communication card
