5 Planning the installation

Dimensions

Installation and Operation Manual M50A_260 RPI503M260000 Product version L and M EU V1.3 EN 2023-08-14

5.3 Dimensions

82 82 82

410

82 82

460 11

3117

27 20

595

263,4

699

144,5

629

538

6,5

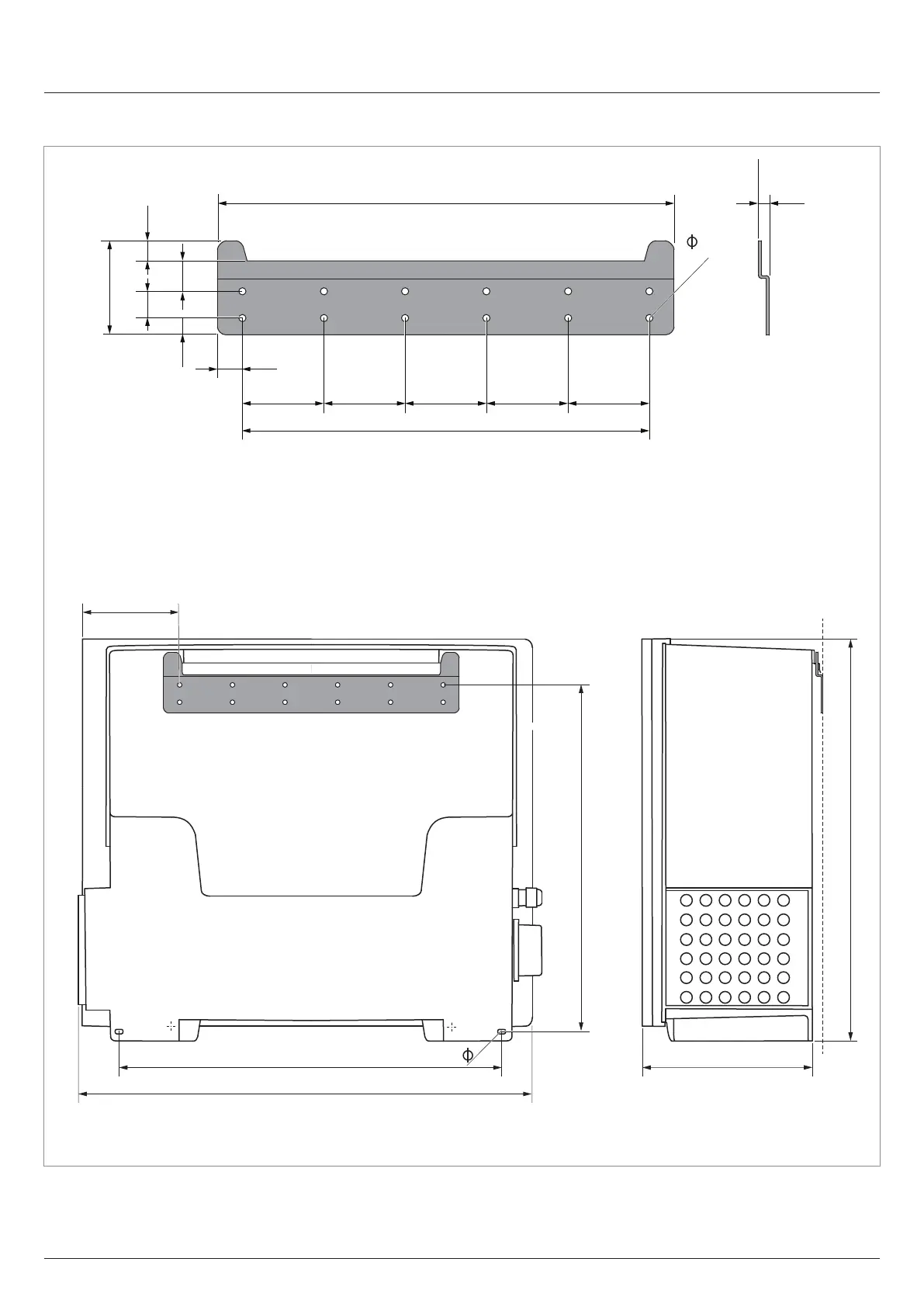

Fig. 5.11: Inverter with mounting plate, dimensions without antennae (in mm)
