7.8.5 AC cable gland
D1 D2 D3
P

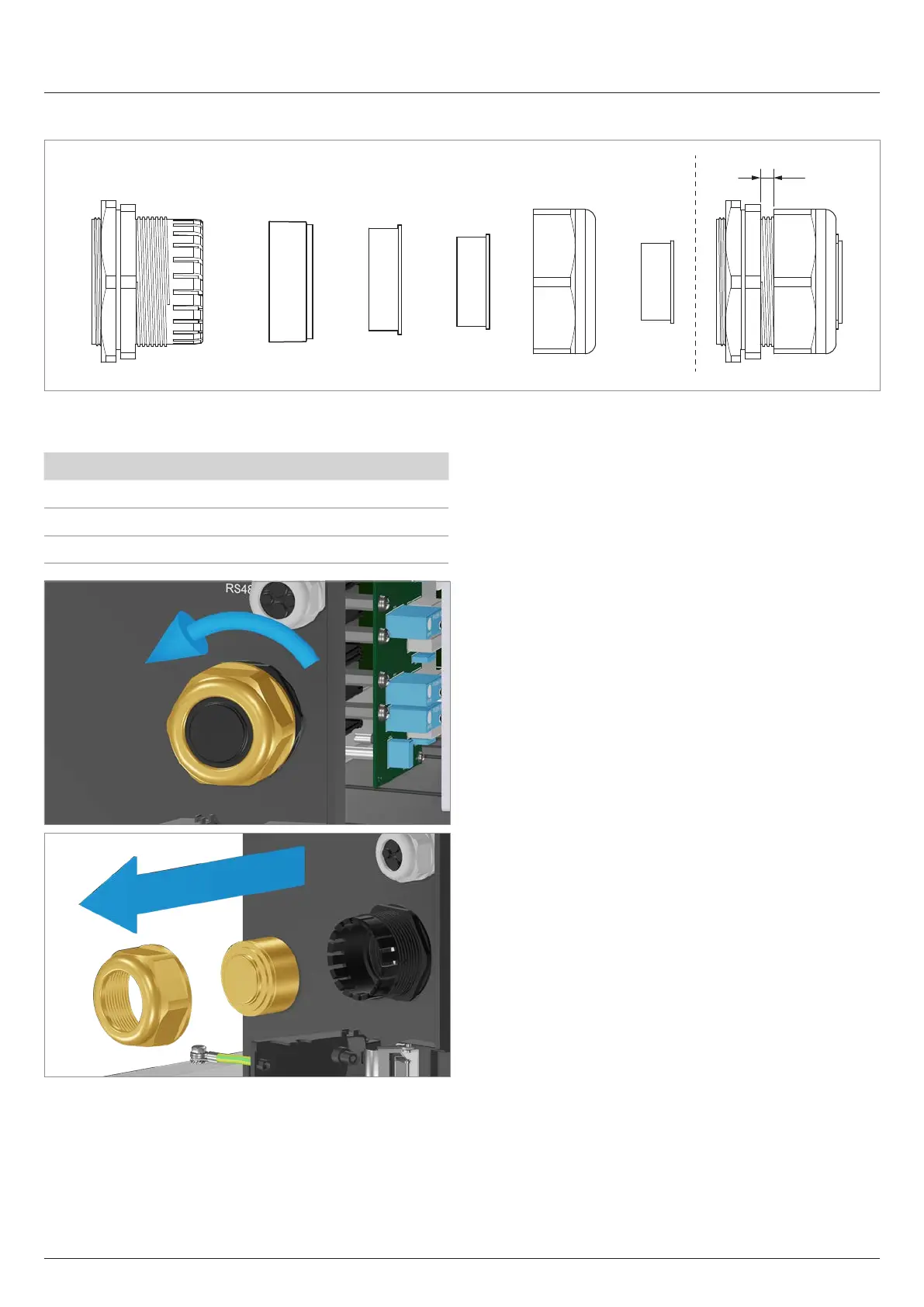

Fig. 7.15: Use of the parts of the AC cable glands depending
on the cable diameter
Cable diameter Torque P
D1 30,8 to 44,7 mm
13 Nm 2 mm
D2 26,9 to 35,4 mm 15 Nm 2 mm
D3 21,9 to 27,6 mm 13 Nm 2 mm
1. Unscrew the cable gland for the AC connection, remove
the cable gland and seal.
