7.4.2 Wall mounting (suspended)
Special case: hanging the inverter without
screwing into the base
In general, the inverter must always be screwed
onto the base during wall mounting. Deviations
from this are only possible in exceptional cases
approved by Delta Electronics. Always check
with Delta Customer Service rst if you want to
deviate from the work instructions given in this
section.

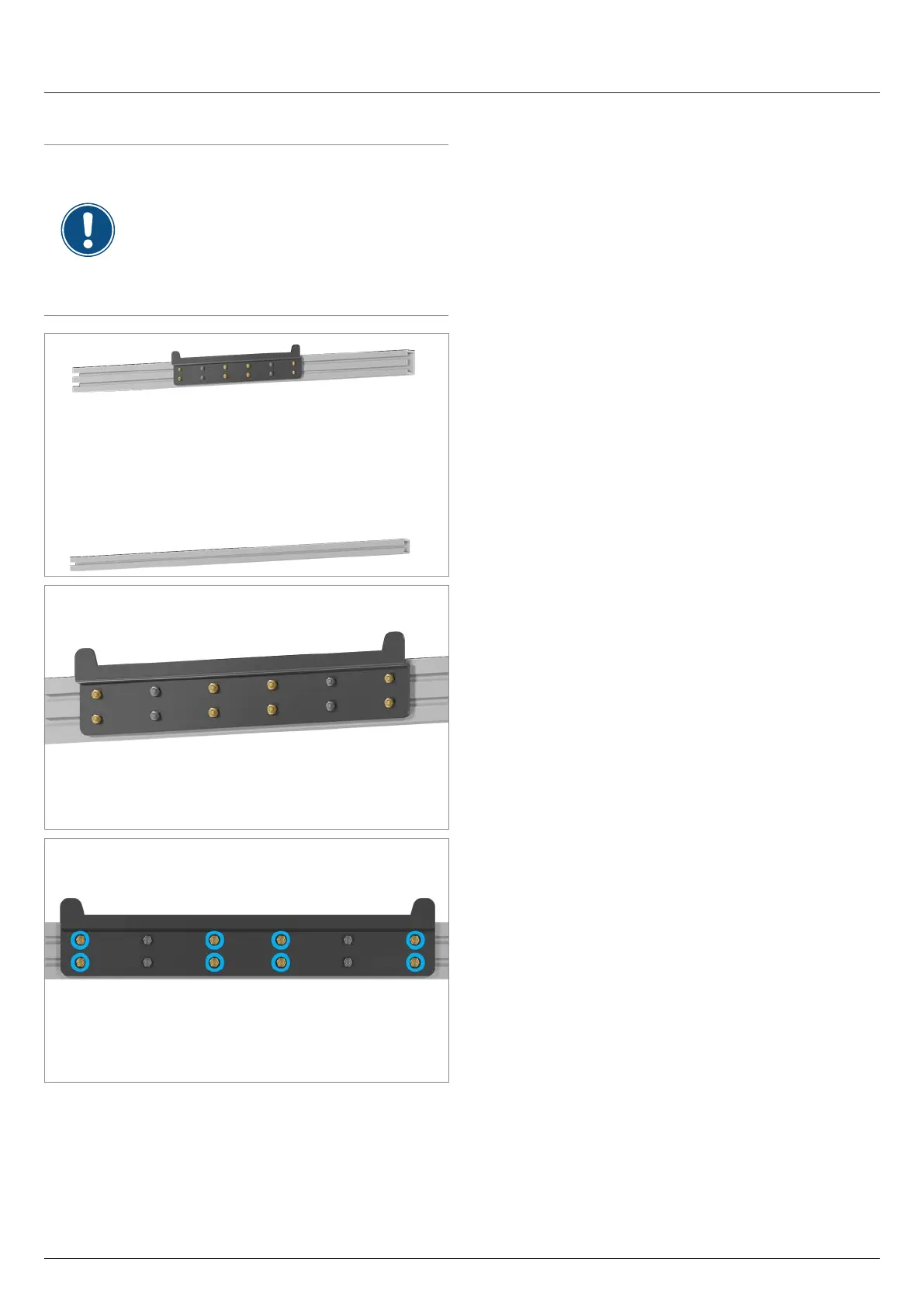

1. Attach the mounting plate to the wall/mounting system
with at least 8 M6 screws.
2. Tighten the 8 points highlighted in the image at a mini-
mum.
