Disturbance Records » Get From Relay
The first option to view the waveform records is to download and display waveform records from CPM 310

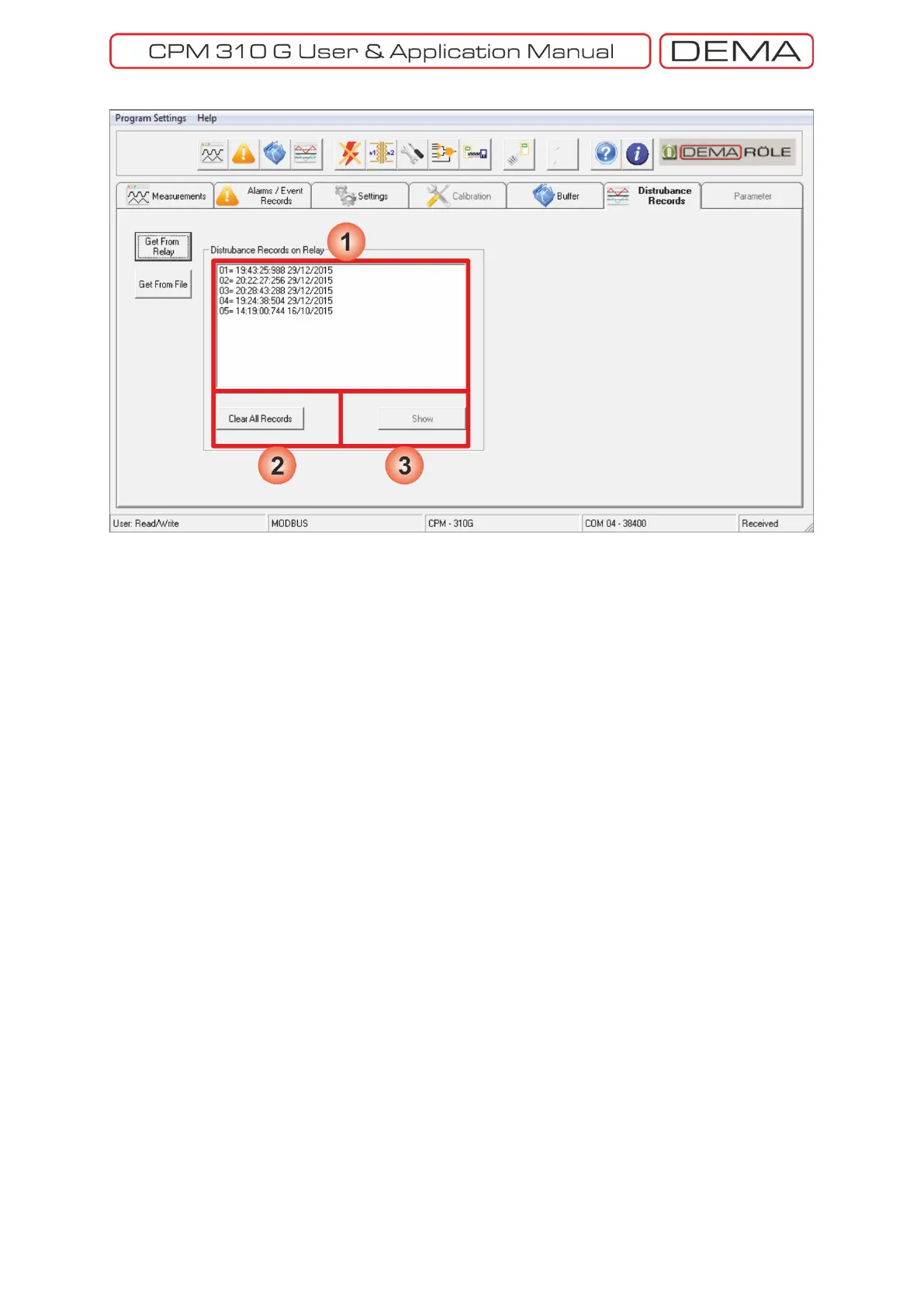

G memory, using the Get from Relay button. The picture above displays a sample screen that Get from
Relay button leads to.
1. Disturbance Records on Relay window displays the waveform records on CPM 310 G memory, stamped
with recording time information in hour : minute : second : millisecond, day / month / year format.
2. Clear All Records button deletes all the records existing on CPM 310 G memory. Before taking this action, it
must be understood that this process is irreversible and all records that are not archived will be
permanently lost. Note that CPM 310 G automatically overwrites old records when the dedicated memory
is full, so manual memory cleanup is not necessary under normal conditions.
3. Show button downloads the data of selected record and launches a new window to display the contents of
the waveform record. The download process takes up to 2 minutes for each record via RS232
communication.
